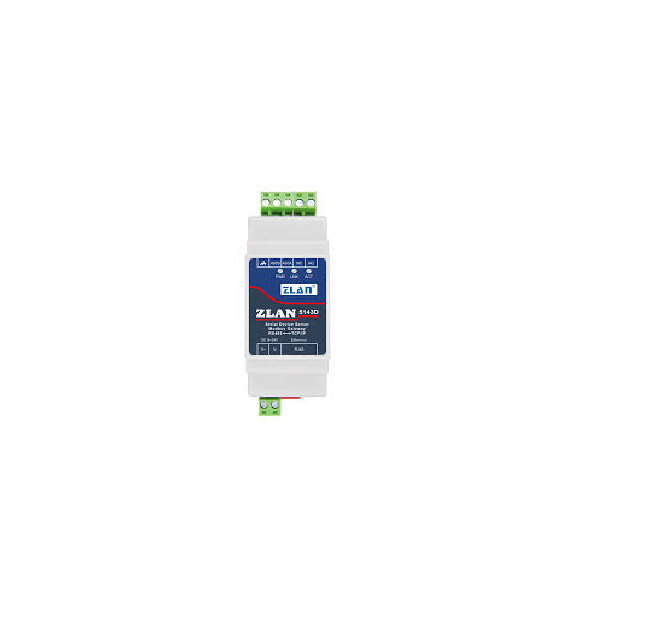

ZLAN5143D DIN-type Serial Device Server RS485 to TCP MQTT JSON Converter Modbus TCP to Modbus RTU

ZLAN5143D DIN-type Serial Device Server RS485 to TCP MQTT JSON Converter Modbus TCP to Modbus RTU

ZLAN5143D is a kind of RS485 device data collector/IOT gateway specially designed for industrial environment, which integrates serial port server, Modbus gateway, MQTT gateway, RS485 to JSON and other functions. It has an RS485 interface and a 10M/100M Ethernet interface.                                                                                                                                      It uses guide-way type installation way, the volume is compact and installation is convenient. Terminal type power supply access, 9~24V wide voltage input.
ZLAN5143D has powerful functions of IOT gateway, which is very suitable for collecting all kinds of RS485 instruments and sensors in the industrial field, including collection of local network or uploading to cloud server for independent collection and posting.

HIGHLIGHT

>Support Modbus gateway Function, support Modbus RTU to Modbus TCP.
>Support for multiple hosts.
>Support for custom heartbeat and registration package features.
>Support "transcoding" function.
>RS485 can drive 32 load.
>Support data submission and sending function in HTTP mode.

HARDWARE FEATURES

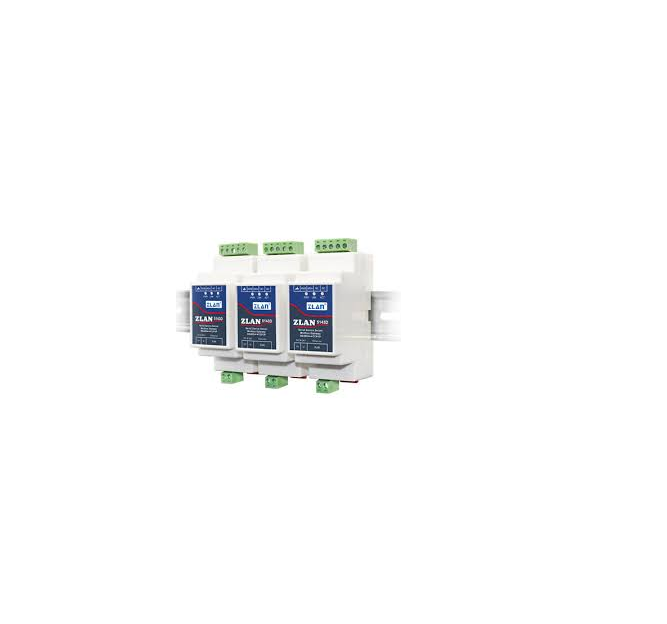

● Guide-way design: suitable for internal installation of cabinet in industrial field.
● Compact size: relative to the ordinary serial port server, the width is small, does not take up space.
● Terminal type power supply, 9~24V wide voltage input, with anti-opposite power connection protection.
● Terminal RS485 interface, support 32 slave devices, baud rate support 300 ~ 115200bps.
● RS485/422 has capacity of 256 loads.
● Abundant panel indicator lights are convenient for debugging.

SOFTWARE FEATURES

● Support TCP server, TCP client, UDP mode, UDP multicast. Support TCP server side function as TCP client. Support
30 TCP connections as a TCP server and 7 destination IP as a TCP client.
● The baud rate supports 1200~115200bps, data bits support 5~9 bits, and parity can be None, Odd, Even, Mark,
Space. CTS/RTS hardware flow control and XON/XOFF soft flow control.
● Support the function of sending MAC address when device connecting to facilitate cloud management of devices.
● Provide search, configure the device secondary development package DLL on PC.
● Support Web browser configuration, support DHCP dynamic access IP, DNS protocol connect domain name server
address.
● Support remote search device, configure device parameter, device program upgrade on cloud.
● Support remote viewing of TCP connection status, serial port data sending and receiving status of devices through
software. Virtual serial port supports data monitoring.
