10.1 INCH RUGGED TABLET ANDROID+ IP67

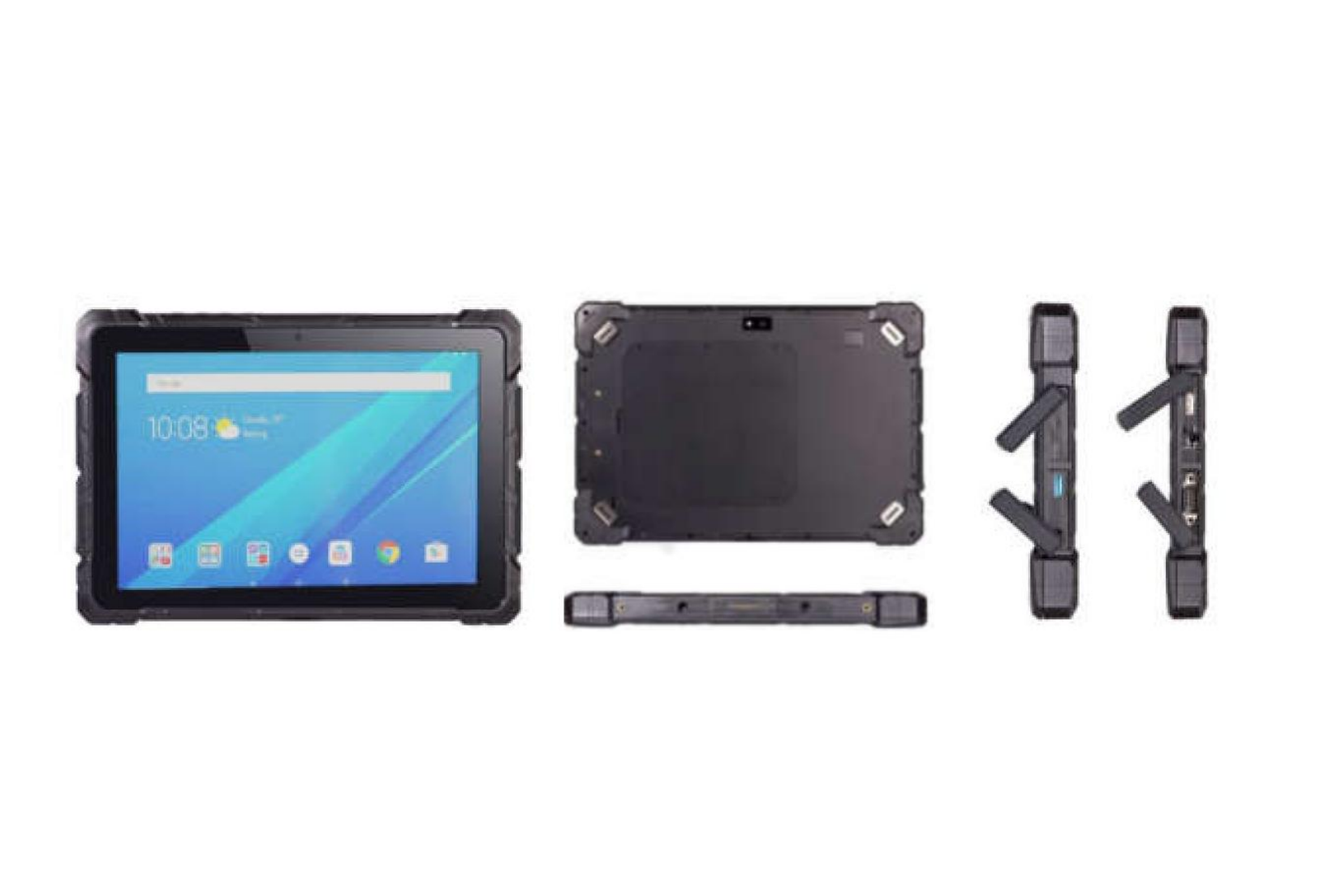

📀 STS‑10.1 A Rugged Tablet (Model: STS‑101A14RTWIFI)

💾 Display & Touch

• Screen: 10.1″ IPS display, resolution 1920 × 1200 (FHD)

• Touch Panel: Tempered glass G+G, full lamination, glove‑touch capable, support ≥10 touch points

⚙️ Performance & OS

• CPU options:

  • Octa‑core MT8788 Cortex‑A73 @ 2.0 GHz (Android 14 version)

  • Intel i7 12th Gen model N5100 Jasper Lake (Windows version)



    Memory & Storage:

    • Android variant: 6 GB DDR + 128 GB ROM, expandable via MicroSD up to 512 GB

    • Windows/i7 variant: likely 256 GB SSD options



🔋 Battery & Power

• Battery: 10,000 mAh (3.7 V) lithium battery (Android version)

• Working Time: Up to ~19 hours depending on configuration

• Charger: 5 V/2 A adapter; i7 version: DC 12 V / 3 A input

🛠️ Durability & Certifications

• Ingress & Drop Protection: IP66 (Android), IP65/IP66 or better; MIL‑STD‑810G drop resistance (~1 m)

• Rugged build with silicone/metal housing, vandal-proof outer shell

🌐 Connectivity & I/O

• Wireless: Wi-Fi 2.4 GHz + 5 GHz, Bluetooth 4.2 (or 5.2 on newer variant), 4G LTE with multi‑band support

• GNSS: GPS, Glonass, Beidou supported

• SIM Slots: Dual Nano-SIM

• Ports: HDMI‑A ×1, USB‑C ×1 (data/PD/DP), USB‑A ×1, RJ45 Gigabit Ethernet, RS232 (DB9), 3.5 mm audio jack, TF card slot

📸 Camera, Sensors & Biometrics

• Cameras: 5 MP front, 13 MP rear with flash

• Speaker: Dual waterproof speakers

• Fingerprint Scanner: Built‑in biometric sensor (FAP20)

• Sensors: Light sensor, accelerometer, gravity sensor

• Extras: NFC, optional barcode scanner modules, VESA mount hole (75 × 75 mm)

📏 Physical Dimensions

• Model i7: approx. 273 × 172 × 20 mm, weight ~1,180 g ±50 g

✅ Standard Configuration Summary
