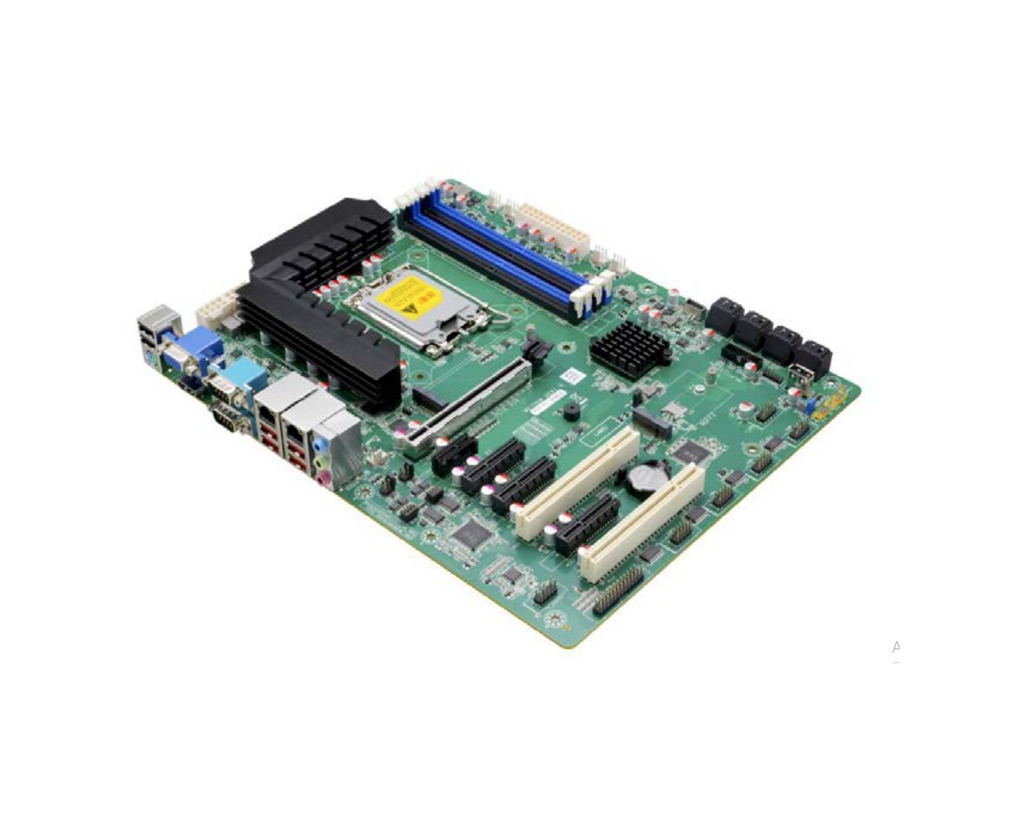

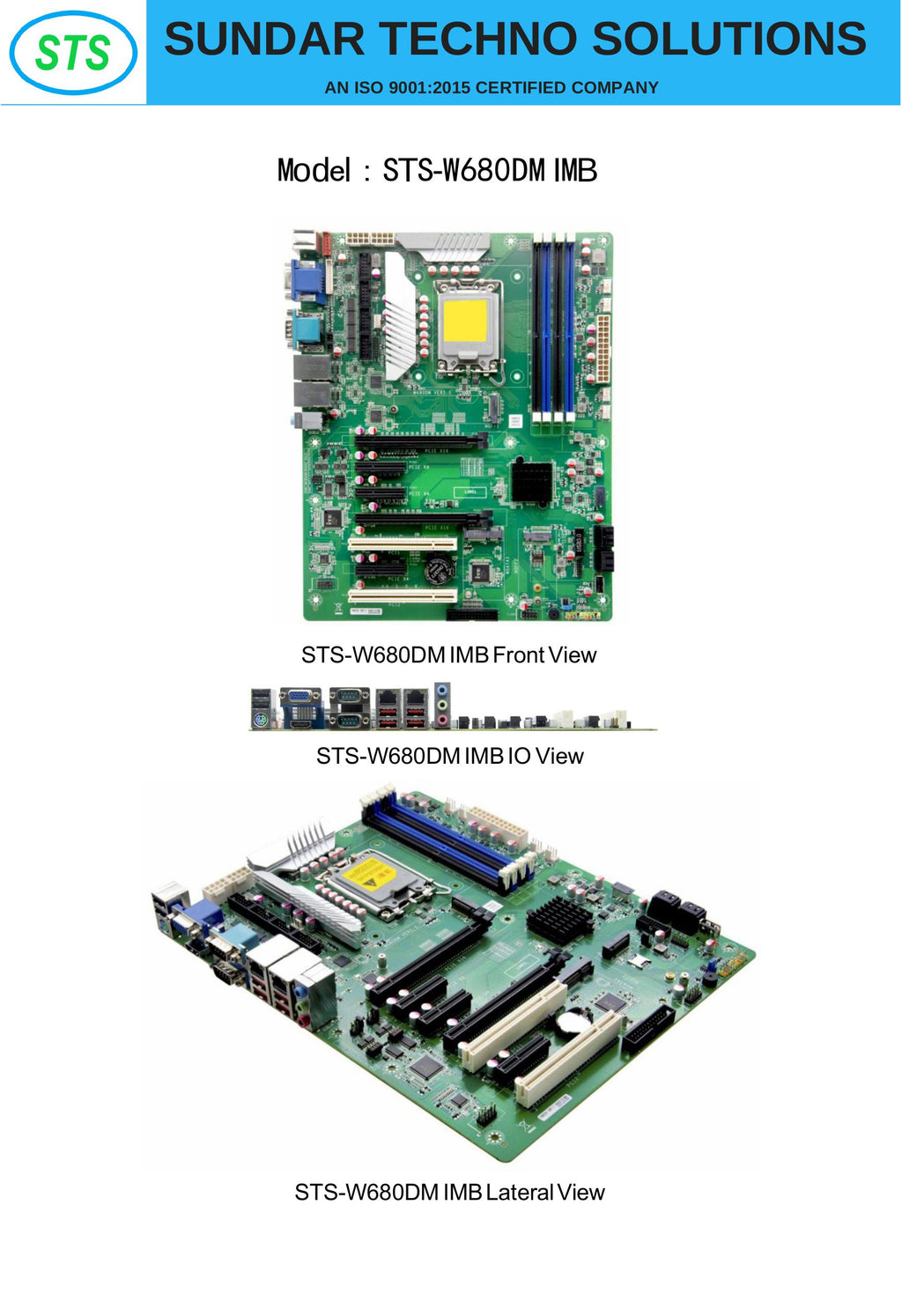

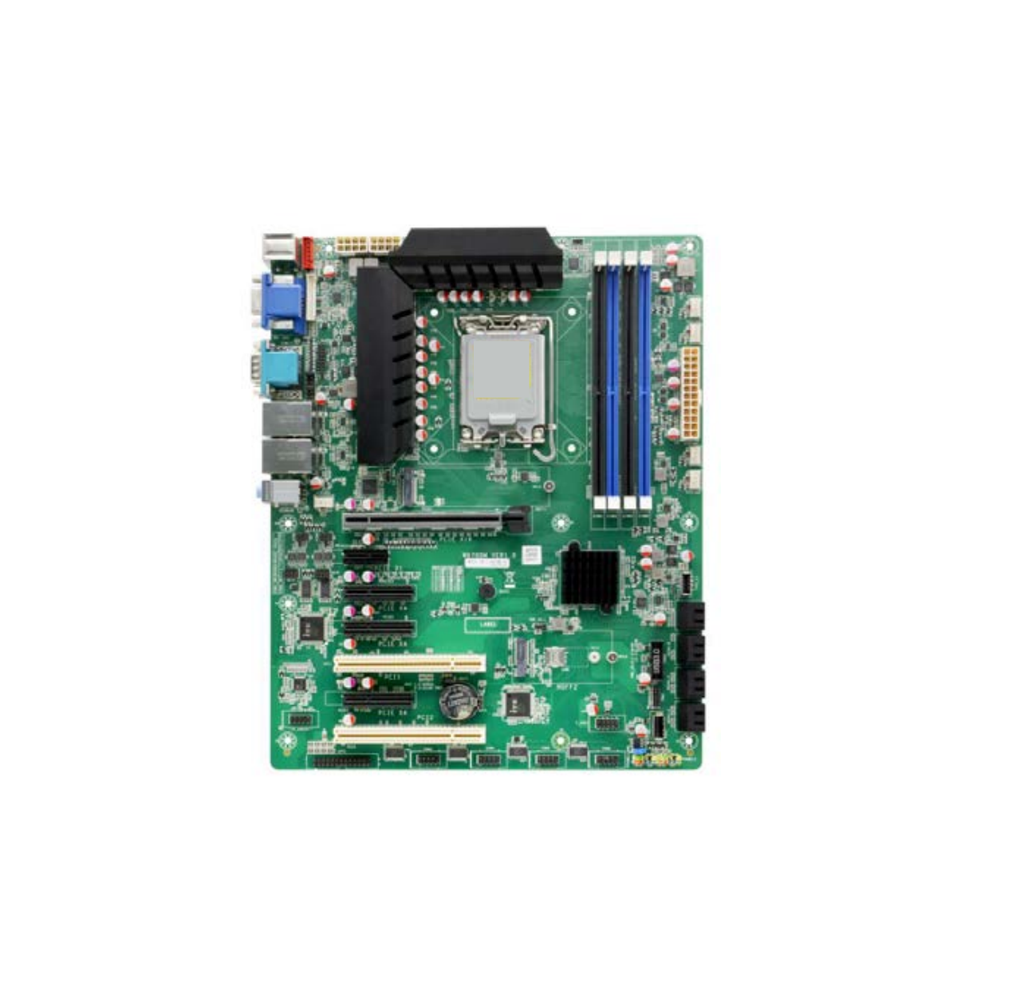

STS-W680DM IMB INDUSTRIAL MOTHERBOARD

STS-W680DM IMB INDUSTRIAL MOTHERBOARD

Model No.

STS-W680DM IMB

Processor

Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9/Xeon processors, TDP up to 125W

Chipset

Intel® W680

Memory

4* DDR4 DIMM RAM slots, 3200MHz, up to 128GB, support ECC memory

Display

Onboard Intel® iGP Graphics, support DirectX12.1, OpenGL 4.5, 4K display

• 1* VGA, support resolution max. 1920x1200@60Hz

• 2* HDMI 1.4, support resolution max. 4096x2160@ 60Hz

LAN

2* Intel i210/i217 Gigabit LAN port, support Wake On LAN / PXE

Storage

• 4* SATA3 hard disk ports, transfer speed up to 6Gbps, support RAID 0,1,5,10

• 1* mSATA SSD slot

• 1* M.2 slot, support M.2 Key M 2280 NVME PCIE X4 SSD

Audio

Onboard ALC897 7.1+2 channel high definition audio controller, support MIC / Line-out / Line-in

Expansion

• 2* PCI-E x16 slot (default as x8 signal; need change hardware to support x16 signal, only one PCI-E can be changed to x16 signal)

• 3* PCI-E x1 slot, PCI-E 2 / PCI-E 4 is 4.0, PCI-E 3 is 3.0

• 2* PCI slot

• 1* M.2 slot, support M.2 Key B 2242/2252 4G / 5G module

Rear I/O Port

• 1* PS/2 KB/MS port

• 1* DB15 VGA

• 2* HDMI 1.4

• 2* DB9 RS232 COM ports, support pin9 charged function, support RS485/422

• 2* USB2.0

• 4* USB3.2 Gen 2x1 ports (10Gbps)

• 2* RJ-45 Gigabit LAN ports

Internal I/O Port

• 1* Triple layer audio port, support Line-out, MICk, Line-in

• 2* USB2.0 port, 7*5Pin

• 1* Vertical USB2.0

• 1* TYPE-E USB3.0

• 2* USB3.0 port, 2*10pin

• 1* Front panel audio port, 2*5Pin

• 2* Front panel power button and LED indicator port, 2*5Pin

• 1 24pin ATX power connector*, 2 8pin ATX power connector*

  • 1 PS2 KB/MS port*, 1*6pin

  • 1 VGA port*, 1*12pin, same signal with DB15

  • 1 HDMI port*, 2*18pin

  • 1 TPM port*, 2*6pin

  • 4 RS232 COM port*, 2*5pin

  • 1 SIM slot*

  • 1 LPT port*, 2*13pin

  ---

  Fan Connector

  • 1* 4Pin CPU fan connector

  • 4* 4Pin system fan connector

  ---

  BIOS

  • 128MB Flash ROM

  ---

  Watchdog

  • Support hardware reset function (1~255s, 0=255 seconds)

  ---

  OS Support

  • Windows 10 / Windows 11 / Linux

  ---

  Power Type

  • Adopt ATX 24pin and 8pin power supply

  ---

  Operating Temp.

  • 0°C ~ 60°C

  ---

  Storage Temp.

  • -20°C ~ 70°C

  ---

  Humidity

  • 5% ~ 95% relative humidity, non-condensing

  ---

  Dimension

  • 306mm x 245mm
