đ„ïž STS-PCI710 Industrial PC
Compact Fanless Embedded Computer for Industrial Applications
đ§ Core Features
-
Processor Support:
Supports Intel 10th Gen Core i3 / i5 / i7 CPUs with integrated chipset, optimized for performance and reliability. -
Form Factor & Build:
-
Compact fanless design with efficient integrated chassis cooling.
-

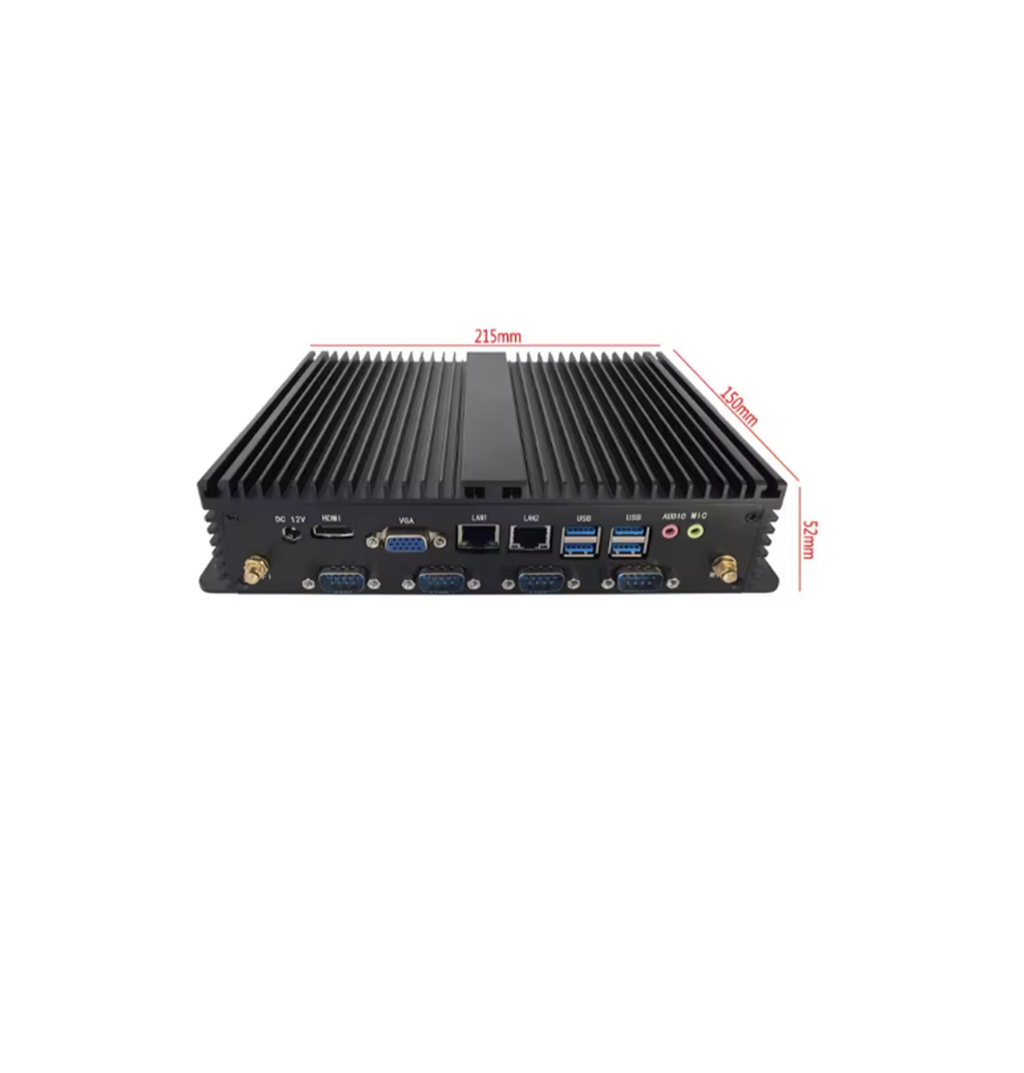

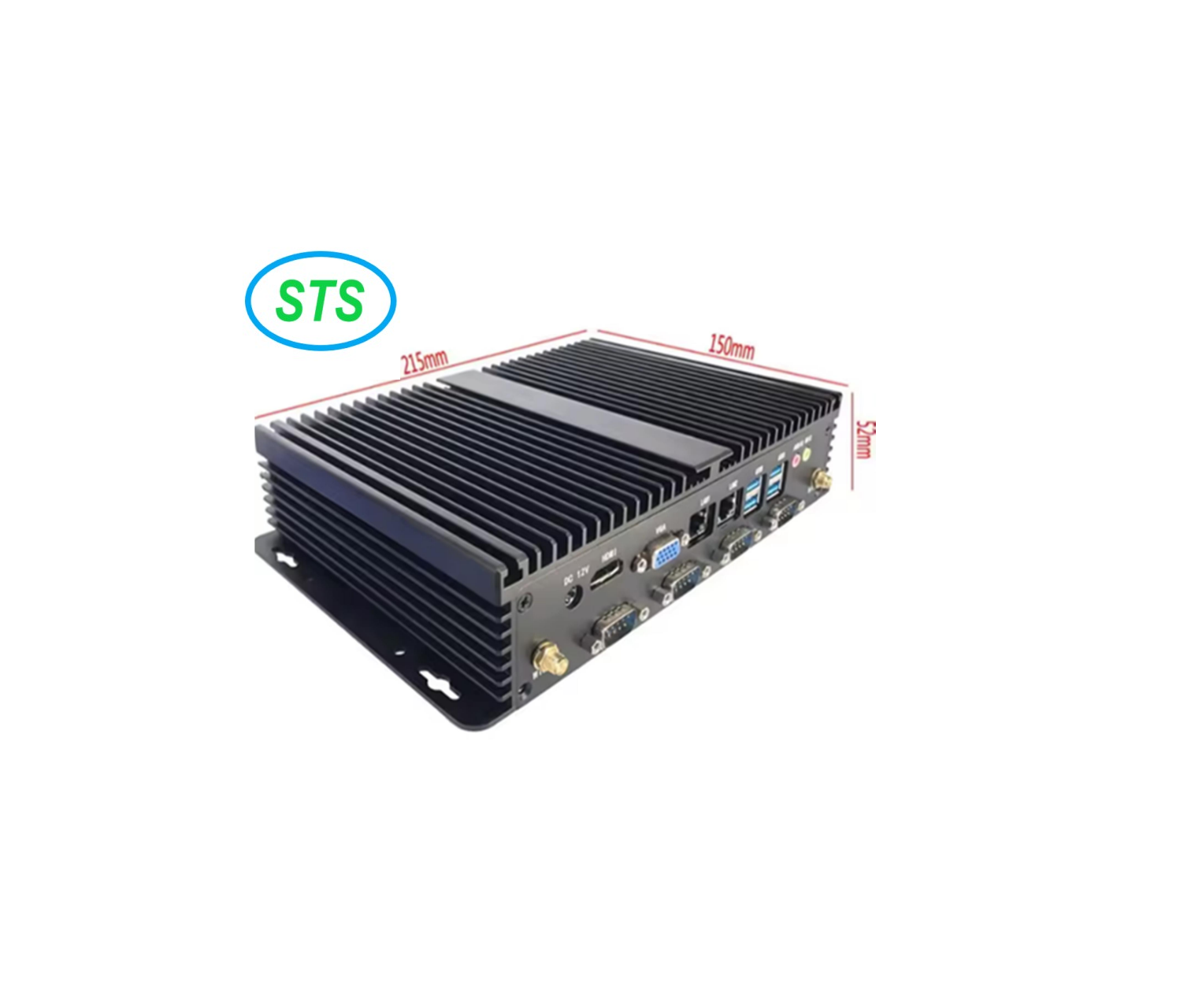

Case Dimensions: 215 Ă 150 Ă 52 mm (L Ă W Ă H)
-
-
Memory:
-
1Ă DDR3 Laptop RAM slot
-
Supports 1333 / 1600 MHz low voltage (1.35V)
-
Max. memory capacity: 8GB
-
-
Graphics:
Integrated Intel HD Graphics 4400 / 5000 / 5500 / 6000 (based on CPU)
Supports advanced rendering: H.264, 3D, 2K, 1080P, Full HD, 4K, UHD
đș Display Interfaces
| Port | Resolution Support |
|---|---|
| 1Ă VGA (DB15) | Up to 1920Ă1200 @ 60Hz |
| 1Ă HDMI 1.4 | Up to 4096Ă2304 @ 24/30Hz |
-
Supports single display, dual-display mirroring or extension.
-
Compatible with DOS-based single display.
đ Networking
-
Default LAN: 1Ă Realtek 8111H Gigabit RJ45 Ethernet
-
Optional: Dual LAN support
-
Features: PXE boot and Wake-on-LAN

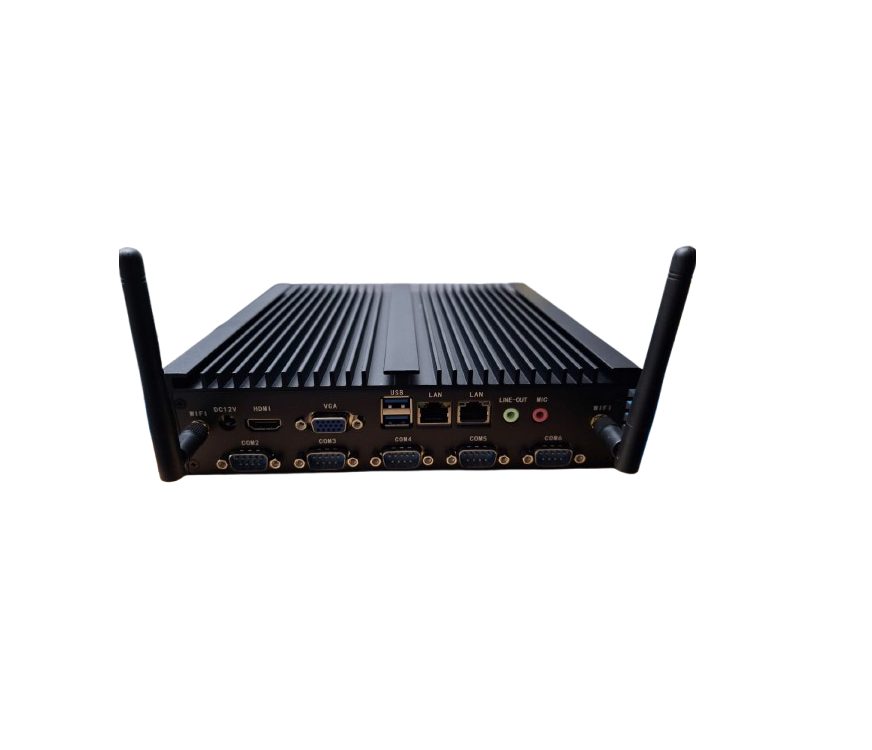

𧩠External I/O Ports
-
Power Input: 1Ă DC-In (5.5Ă2.5mm, 12V 5A / 7A / 10A supported)
-
Video: 1Ă HDMI, 1Ă VGA
-
USB: 2Ă USB 2.0, 4Ă USB 3.0
-
COM Ports: 6Ă Serial Ports
-
Audio: 1Ă Mic-In, 1Ă Speaker
-
LAN Ports: 4Ă RJ45 (varies by config)
𧱠Built-in Pin Headers & Interfaces
-
LVDS, INVERT, F_AUDIO, F_PANEL, AUTO_SW
-
SIM card slot, CLR_CMOS, CPU_FAN, GPIO
đ” Audio
-
Codec: Realtek ALC662 HD
-
Features: 6-channel high-fidelity digital audio controller
đŸ Storage Options
-
1Ă SATA 3.0 port â For 2.5" SSD or HDD
-
1Ă mSATA slot (SATA protocol) â For mSATA SSD
đ Applications
-
Industrial automation control
-
IoT gateways
-
Data acquisition systems
-
Transportation & embedded systems
-
Surveillance or NVR setups
đ„ïž STS-PCI710 Industrial PC
High-Performance Fanless Embedded Box PC â Ideal for Industrial Applications
đ General Specifications
| Parameter | Details |
|---|---|
| Model | STS-PCI710 |
| Processor | Supports IntelÂź 10th Gen Coreâą i3/i5/i7 CPUs |
| Chipset | Integrated single chipset in CPU (energy-efficient, low TDP: 15W) |
| Memory | 1Ă Laptop DDR3 1333/1600MHz, Low Voltage 1.35V, Max. 8GB |
| Graphics | Integrated Intel HD Graphics: 4400 / 5000 / 5500 / 6000 |
| BIOS | AMI BIOS |
| Operating Systems | Windows 10/11, Ubuntu 14.04/16.04, Linux |
đ„ïž Display & Graphics
| Display Options | Specs |
|---|---|
| VGA Port | 1Ă DB15, Max. 1920Ă1200 @60Hz |
| HDMI Port | 1Ă HDMI 1.4, Max. 4096Ă2304 @24/30Hz |
| Display Support | H.264, 3D, FHD, 2K, 4K UHD; single/dual display, expansion, DOS support |
𧩠I/O & Connectivity
| Ports | Details |
|---|---|
| LAN | 1Ă Realtek 8111H Gigabit RJ45 (Wake-on-LAN, PXE boot), Optional: Dual LAN |
| USB Ports | 2Ă USB 2.0, 4Ă USB 3.0 |
| COM Ports | 6Ă COM (RS232/RS485/RS422 as specified) |
| Audio Ports | 1Ă Mic-in, 1Ă Speaker |
| Other I/O | 1Ă DC-in, 1Ă HDMI, 1Ă VGA, 1Ă Power Button |
đ Storage Options
| Storage Type | Interface |
|---|---|
| 2.5â SATA HDD/SSD | 1Ă SATA3.0 port |
| mSATA SSD | 1Ă mSATA slot (SATA protocol) |
đ¶ Wireless & Expansion
| Feature | Description |
|---|---|
| WIFI | 2Ă External WiFi holes for antenna mount |
| Mini PCIe Slot | 1Ă slot supporting WiFi / 3G / 4G / Bluetooth / GPS |
| Built-in Pins | LVDS, INVERT, F_AUDIO, F_PANEL, AUTO_SW, SIM Slot, CLR_CMOS, CPU_FAN, GPIO |
đ Power & Battery
| Input | DC 12V, 5A / 7A / 10A via DC 5.5Ă2.5mm jack |
|---|---|
| Battery | 1Ă CR2032 button battery (CMOS) |
đŒ Physical & Environmental
| Case Material | Aluminum alloy (black) |
|---|---|
| Size (LĂWĂH) | 215 Ă 150 Ă 52 mm |
| Operating Temp. | -20°C ~ +60°C |
| Storage Temp. | -40°C ~ +70°C |
| Humidity | Operating: â€95% (non-condensing) |
đ Other Features
-
Watchdog Timer: Hardware reset function (0~255s)
-
Power On: Supports power-on on boot, timed power-on, remote switch
-
Certifications: CE, ISO9001:2015
