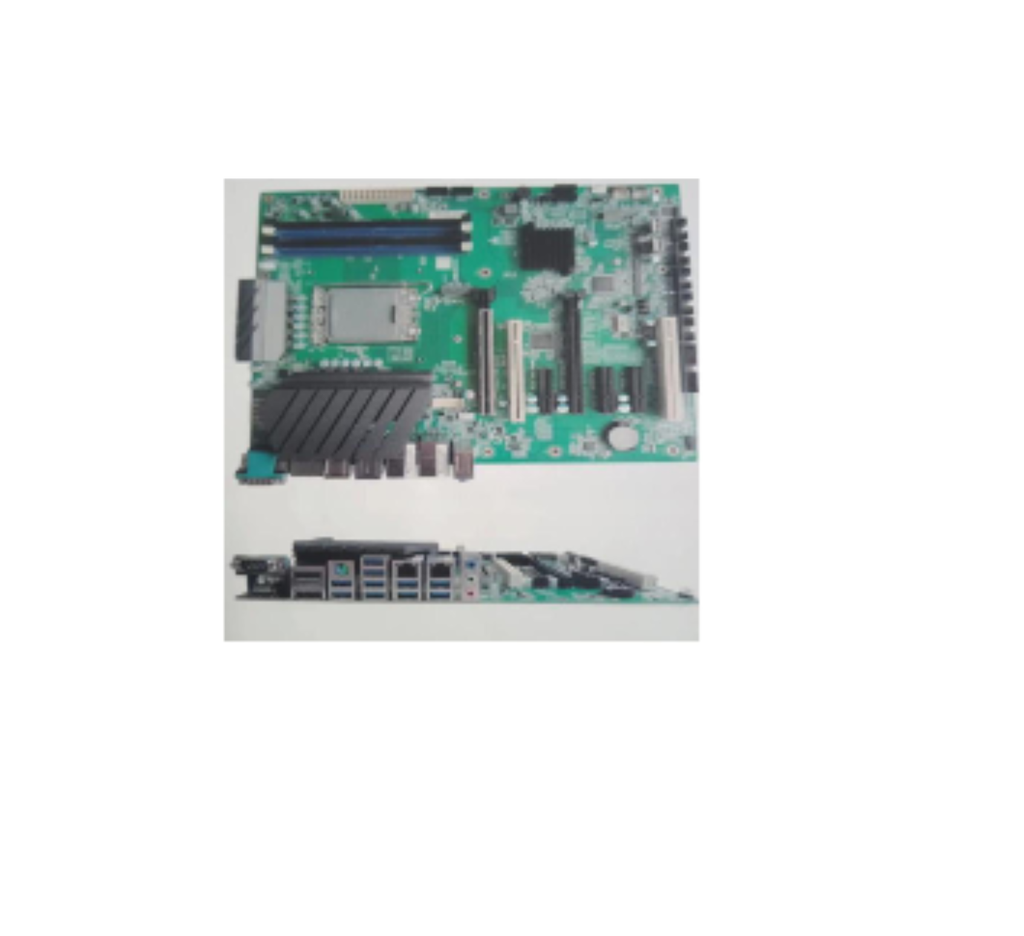

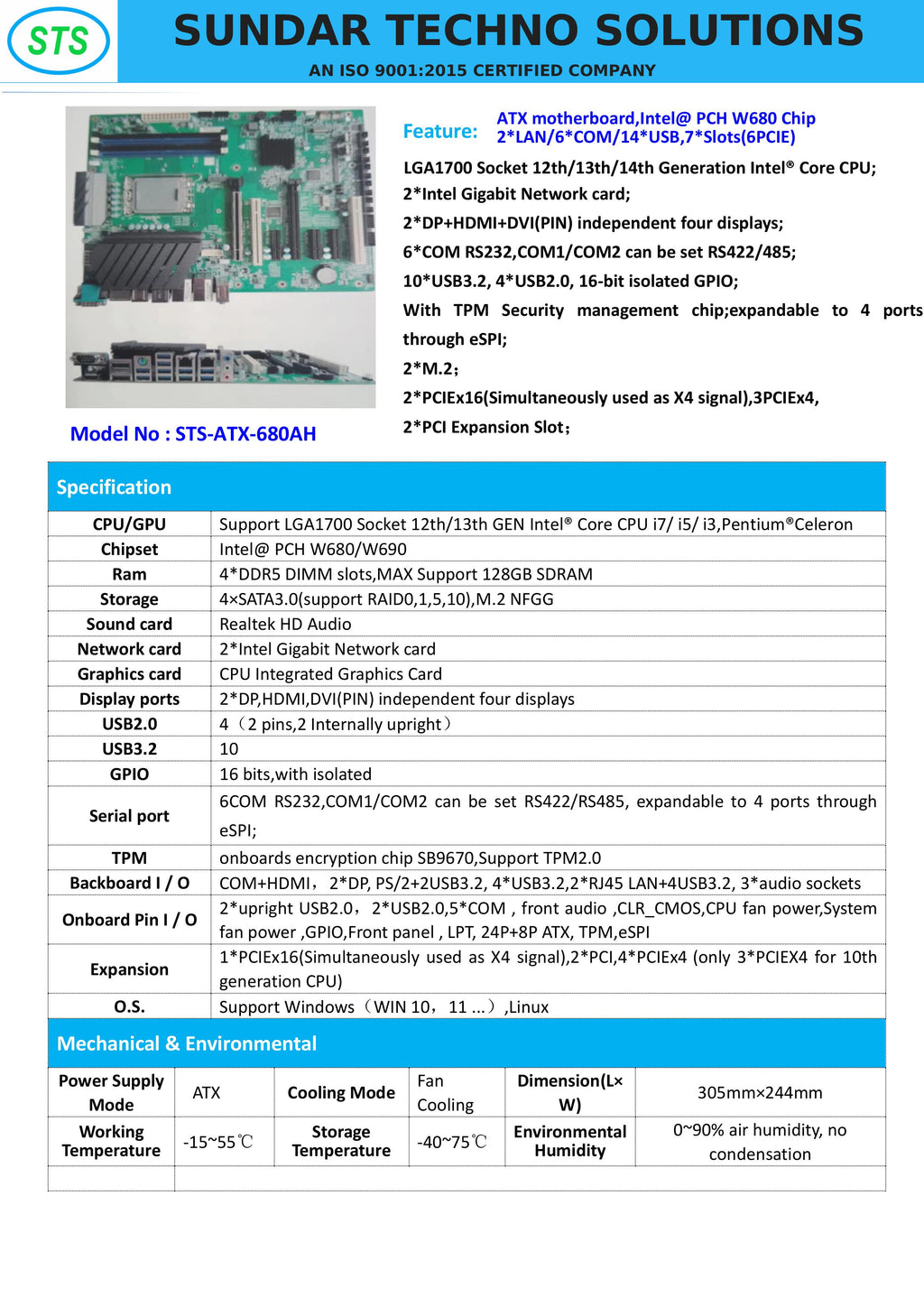

STS-ATX-W680AH Industrial motherboard , Intel@ PCH W680 Chip 2*LAN/6*COM/14*USB,7*Slots(6PCIE)

STS-ATX-W680AH Industrial motherboard , Intel@ PCH W680 Chip 2*LAN/6*COM/14*USB,7*Slots(6PCIE)

Feature :

LGA1700 Socket 12th/13th/14th Generation Intel® Core CPU;                                                    2*Intel Gigabit Network card;
2*DP+HDMI+DVI(PIN) independent four displays;
6*COM RS232,COM1/COM2 can be set RS422/485;
10*USB3.2, 4*USB2.0, 16-bit isolated GPIO;
With TPM Security management chip;expandable to 4 ports through eSPI;
2*M.2；
2*PCIEx16(Simultaneously used as X4 signal),3PCIEx4,
2*PCI Expansion Slot

CPU/GPU : Support LGA1700 Socket 12th/13th GEN Intel® Core CPU i7/ i5/ i3,Pentium®Celeron

Chipset : Intel@ PCH W680/W690
Ram : 4*DDR5 DIMM slots,MAX Support 128GB SDRAM
Storage : 4×SATA3.0(support RAID0,1,5,10),M.2 NFGG
Sound card : Realtek HD Audio
Network card : 2*Intel Gigabit Network card
Graphics card : CPU Integrated Graphics Card
Display ports : 2*DP,HDMI,DVI(PIN) independent four displays
USB2.0 : 4（2 pins,2 Internally upright）
USB3.2 :10
GPIO :16 bits,with isolated
Serial port
6COM RS232,COM1/COM2 can be set RS422/RS485, expandable to 4 ports through
eSPI;
TPM : onboards encryption chip SB9670,Support TPM2.0
Backboard I / O COM+HDMI，2*DP, PS/2+2USB3.2, 4*USB3.2,2*RJ45 LAN+4USB3.2, 3*audio sockets
Onboard Pin I / O 2*upright USB2.0，2*USB2.0,5*COM , front audio ,CLR_CMOS,CPU fan power,System
fan power ,GPIO,Front panel , LPT, 24P+8P ATX, TPM,eSPI
Expansion 1*PCIEx16(Simultaneously used as X4 signal),2*PCI,4*PCIEx4 (only 3*PCIEX4 for 10th
generation CPU)
O.S. Support : Windows（WIN 10，11 ...）,Linux
