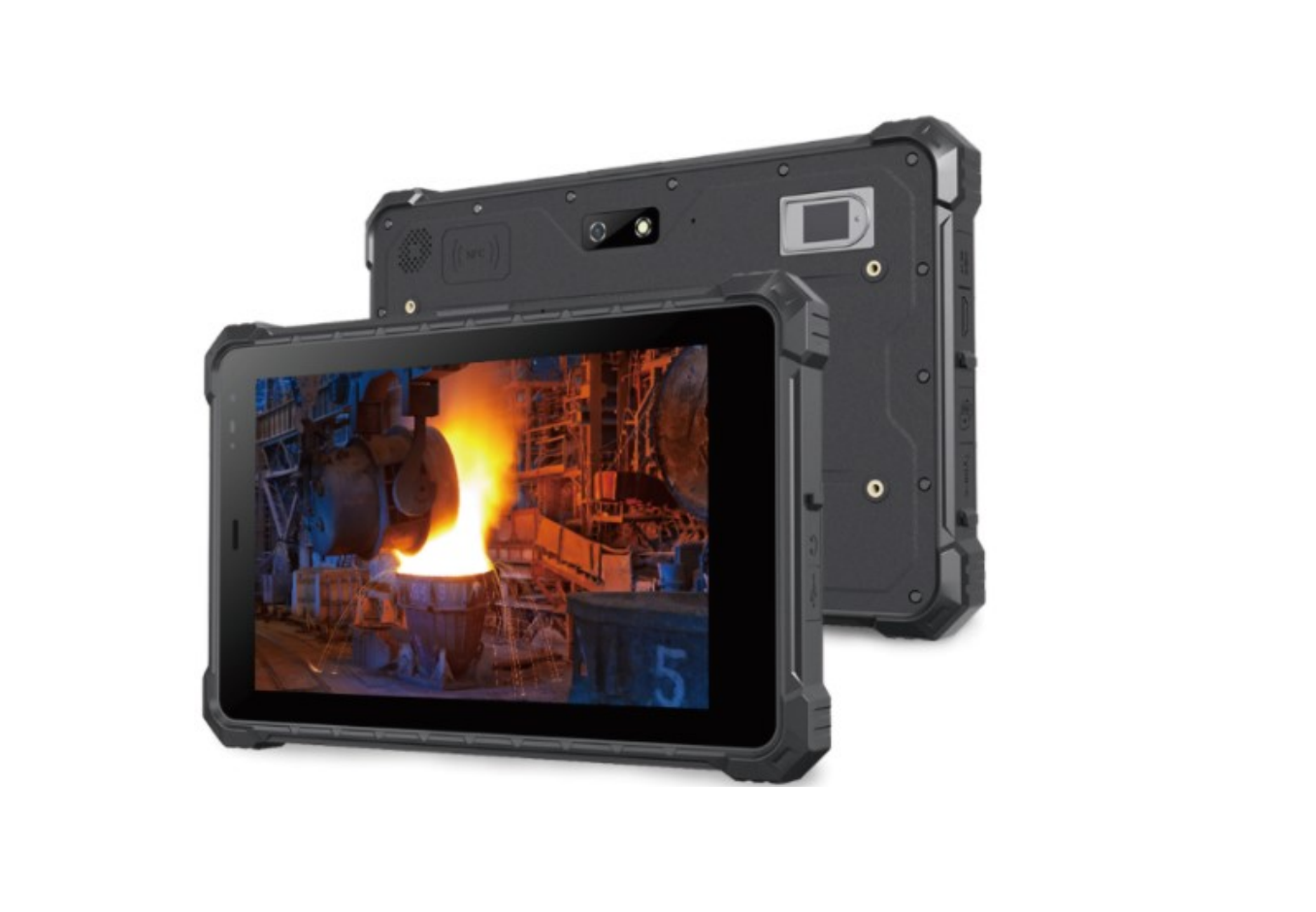

STS 8 INCH LINUX INDUSTRIAL RUGGED TABLET

STS 8 INCH LINUX INDUSTRIAL RUGGED TABLET

Screen size : 8 inch

Screen resolution : 1280*800 1920*1200 (Optional）

Screen brightness : 700cd/㎡

TP touch screen : 10-point touch G+G, hardness ≥7H, support for medical rubbergloves touch screen (can be customized wet hand touch screen)

CPU : Intel JASPER LAKE N5100 Quad Core 4 Thread 1.1GHz-2.8GHz

RAM/ROM 8G+128GB custom 16G+256GB

TPM : Built-in TPM Security chip

Gravity sensor : YES

Camera Front camera : 5.0MP fixed focus
Rear camera : 8MP auto focus

Buttons:                                                                                                                                    Power button*1 ,Volume keys*2, Vol+, VolCustom keys*2, P key, F key

Speaker,receiver, microphone :
*2, speaker 1W/8Ω aluminum film, waterproof speaker; *1, MIC,waterproof rating

Operation system :Ubuntu20.04.5

WIFI : WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual

Bluetooth :  Bluetooth 4.0 transmit distance：10m2G/3G/4G LTE-FDD：B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71LTE-TDD：B38/39/40/41WCDMA：B1/2/4/5/6/8/19

GPS :  GPS, GLONASS

Drop height 1.2m Free fall to wooden floor

Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity Humidity: 95% Non-Condensing

I/O Ports
Type-C *1 USB3.0
Type-A *1 USB3.0

Earphone Jack :  Earphone Jack *1 3.5mmStandard
TF Card *1，Maximum support 256GB expansion
SIM Card *1，Standard Micro SIM card slot
HDMI*1，Micro HDMI
DC port*1, 12V-4A (DC plug outer diameter 3.5mm inner diameter1.35mm)
POGO PIN*1，12Pin USB+charger
RJ45*1
Adapter 12V-4A，DC interface adapter
Certificates IP68, CE CERTIFIED, MIL-STD-810G
