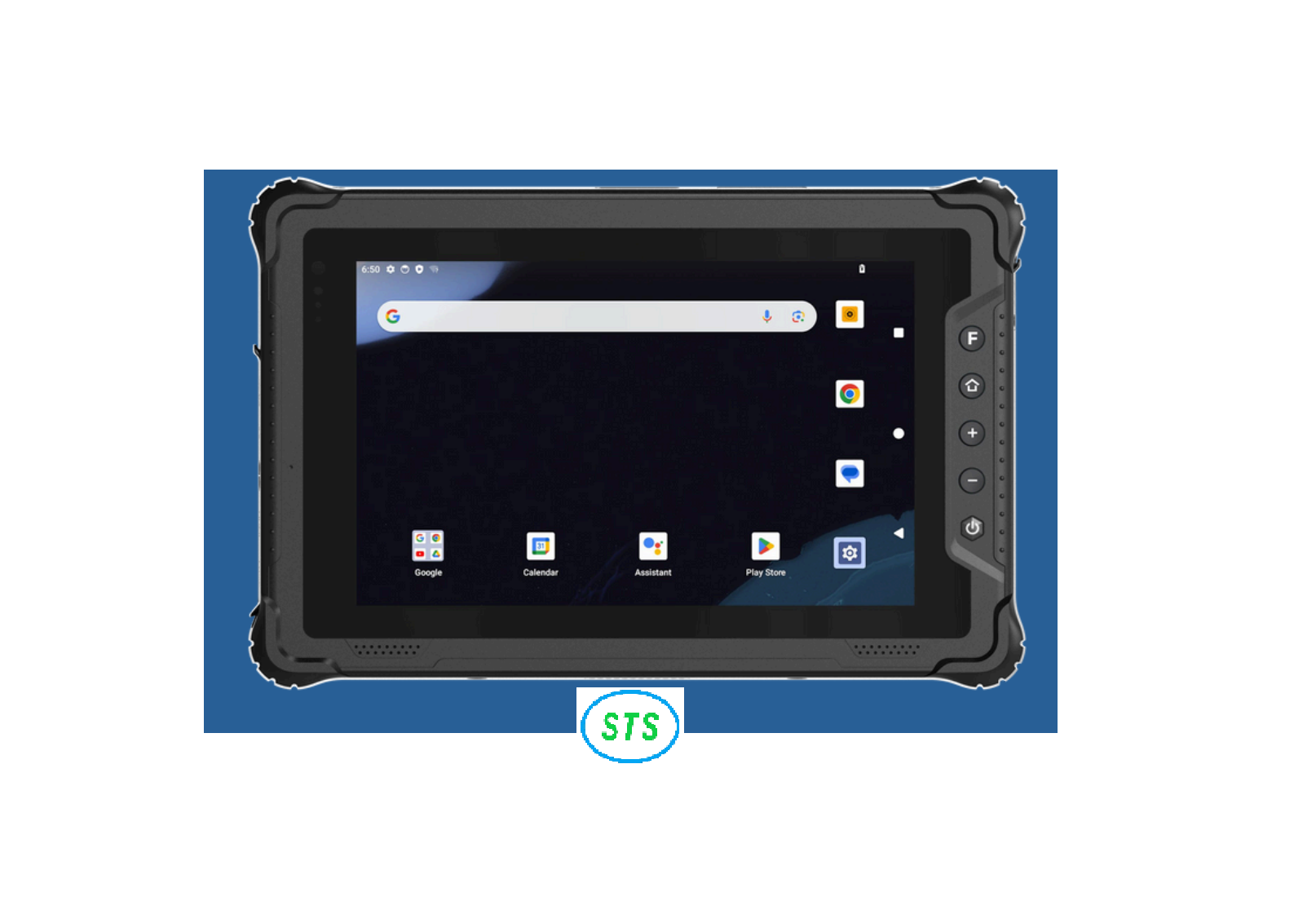

STS 8 INCH ANDOID 14 5G RUGGED TABLET STS-Q856RT

STS 8 INCH ANDOID 14 5G RUGGED TABLET

STS-Q856RT

FUNCTION

.GPS/GLONASS/Beidou navigation, L1+L5 dual-band positioning
·Supports NFC fast card reading, multiple communication protocols
·Optional QR Code Module, quickly scan various 1D and 2D barcodes

RELIABILTY

.Constructed with wear-resistant materials, shock-absorbing architecture, and protective corner design
·Certified with IP65 dust and water resistance
·Rigorously tested to MIL-STD-810H standards,1.22m drop protection

COMMUNICATION

·Integrated with a 5G modem and RF system,it supports mmWave and sub-6 GHz bands      .TDD and FDD modes, and SA and NSA network deployments, covering nearly all critical regions worldwide                                                                                                                         ·Enhanced wireless connectivity with Wi-Fi 6E, BT5.2

Specification Parameter

Basic Parameters

• Dimension: 270 x 178.7 x 19.7 mm

• Weight: 1050 g

• Device Color: Black

• LCD: 10.1” IPS, 1920x1200

• Touch Panel: 10-point capacitive

• Camera: Front: 2MP / Rear: 8MP Auto-focus with flashlight

I/O

• USB 3.0 Type-A, USB Type-C

• HDMI, RJ45, RS232

• 3.5mm audio jack, microSD

• Nano SIM slot, TF slot

Power

• Input: 100-240V AC, 50/60Hz

• Output: 12V/2A

Performance Parameter

• CPU: Celeron N4120 2.6GHz

• OS: Windows 10/11

• RAM: 8GB DDR4

• ROM: 128GB eMMC

Battery

• Capacity: 3.85V/10000mAh

• Type: Rechargeable lithium-polymer

• Endurance: 8hrs video play

• RTC: Built-in rechargeable lithium battery

Data Collection

• NFC: 13.56MHz

  • Support ISO14443A/B, ISO15693

• 2D Scanner: Optional

Communication

• Wi-Fi: 802.11a/b/g/n/ac

• Bluetooth: BT 5.0 BLE

• 3G/4G:

  • 4G LTE-FDD: B1/B3/B5/B7/B8/B20

  • LTE-TDD: B38/B39/B40/B41

• GNSS: GPS, GLONASS, Galileo, Beidou

Reliability

• Operating Temp: -20°C to 60°C

• Storage Temp: -30°C to 70°C

• Humidity: 95% Non-Condensing

• Rugged Feature: IP65 compliant

• Drop Height: 1.2m

Application Range

1. Outdoor Exploration

2. Military Equipment

3. Finance

4. Animal Husbandry
