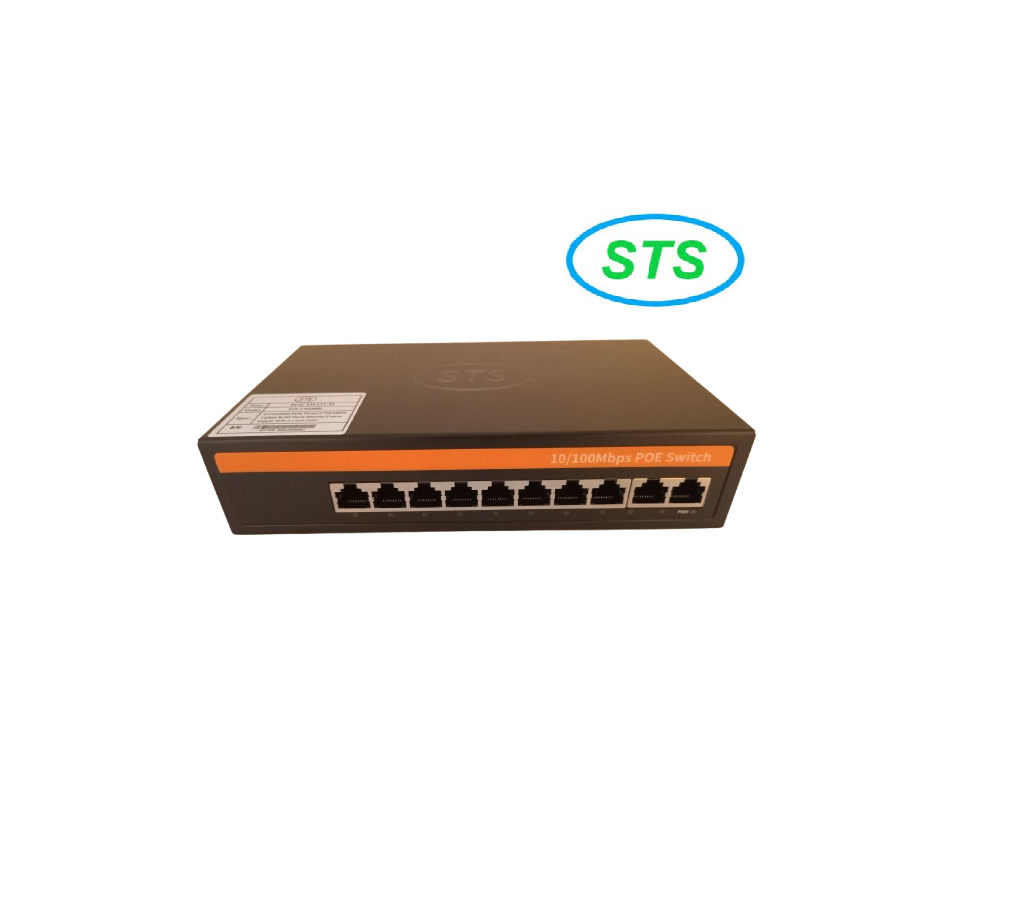

STS 8* 10/100Mbps POE ports, 2* uplink port UNAMNAGED SWITCH

STS 8* 10/100Mbps POE ports, 2* uplink port UNAMNAGED SWITCH

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard withapowerdistance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worryabout
compromising proprietary standards for POE or non-POE devices. In addition, the POEdevicestopssupplying power when it is not connected. These devices, which are far fromthe power outlet, aresuitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect thepoweroutlets for these devices, making the connection to equipment that is difficult to connect toACpowermore flexible and with minimal installation costs. This series POE Powered switches are ideal selectionfor small business networks that want to use the economic deployment of wireless access points(AP)and IP-based network surveillance cameras .

PRODUCT FEATURES

10*10/100Mbps adaptive RJ45 ports, 8*10/100MbpsPOE ports, 2*uplink port;
 Supports port auto-flip (Auto MDI/ MDIX);
 Built-in power supply;
 Maximum power of single POE port: 15.4W/30W;
 Adopts store-and-forward architecture;
 IEEE 802.3af/at power on up to 8 ports

POWER

Power Adapter Voltage :  AC100-240V
Consumption : 150W/250W, Built-in power supply;

NETWORK SWITCH

Network Standard:
IEEE802.3az,IEEE802.3ah,IEEE1588,IEEE802.3x ,IEEE802.3,IEEE802.1as,IEEE802.1D
Switching Capacity : 2Gbps
Packet Forwarding
Rate : 4.1664Mpps
MAC Table : 16K
Power Over Ethernet
POE Standard IEEE 802.3af/at
POE Power Supply

TYPE

>End-Span(1/2+;3/6-)
>POE Power
>Consumption
>af≤15.4W , at≤30W , (every port)
>LED Status
>Indicator
>POE Ethernet LED

INDICATOR

Power indicator : 1 red light indicates that the power normal work;
POE indicator : 8 yellow lights indicate that the POE is power on;
Ethernet indicator : 10 green lights indicate that the Ethernet link and act

WORKING CONDITIONS

Working temperature : 0℃~55℃
Relative Humidity : 20~95% non-condensing
Storage temperature : -20℃~70℃

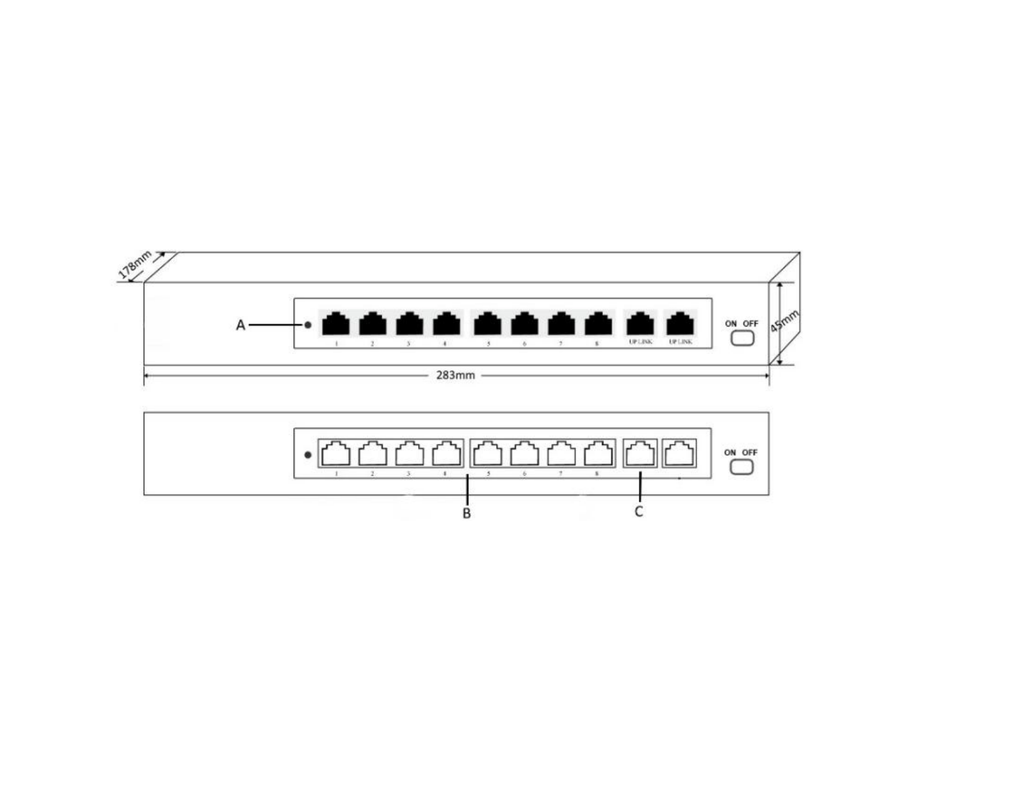

Dimension (L×W×H) : 283mm*178mm*45mm
Color : Black-Gray
Weight : 2250g
Stability : MTBF >30000h
