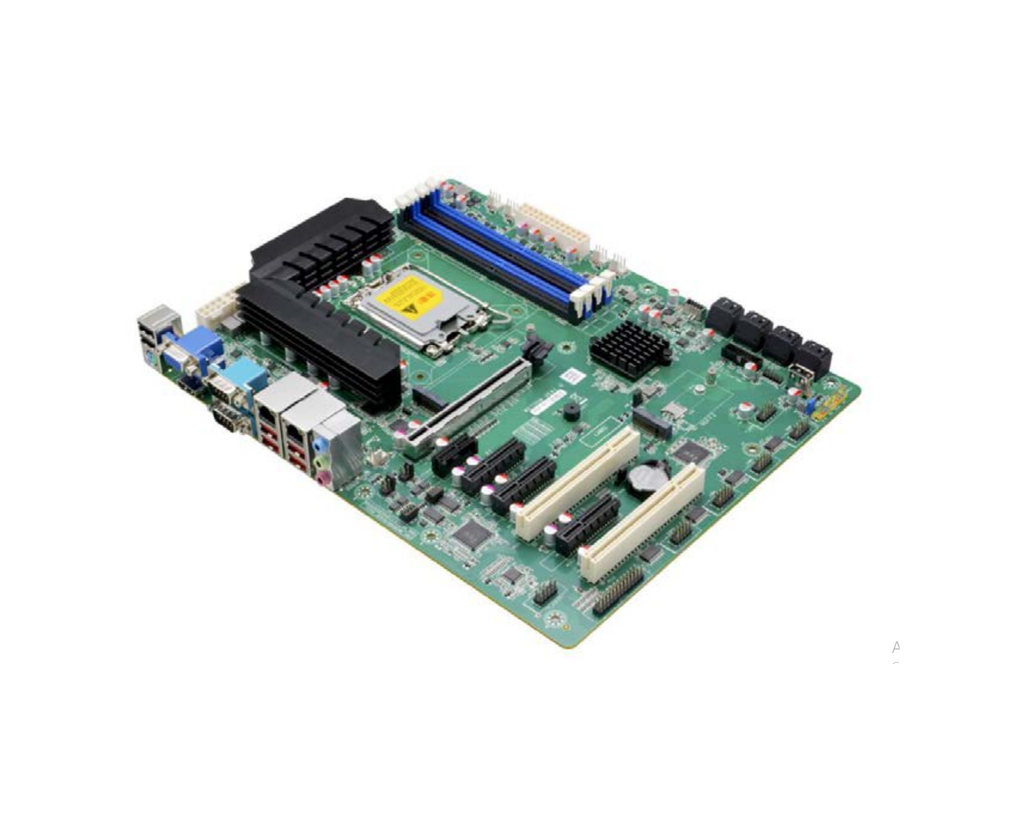

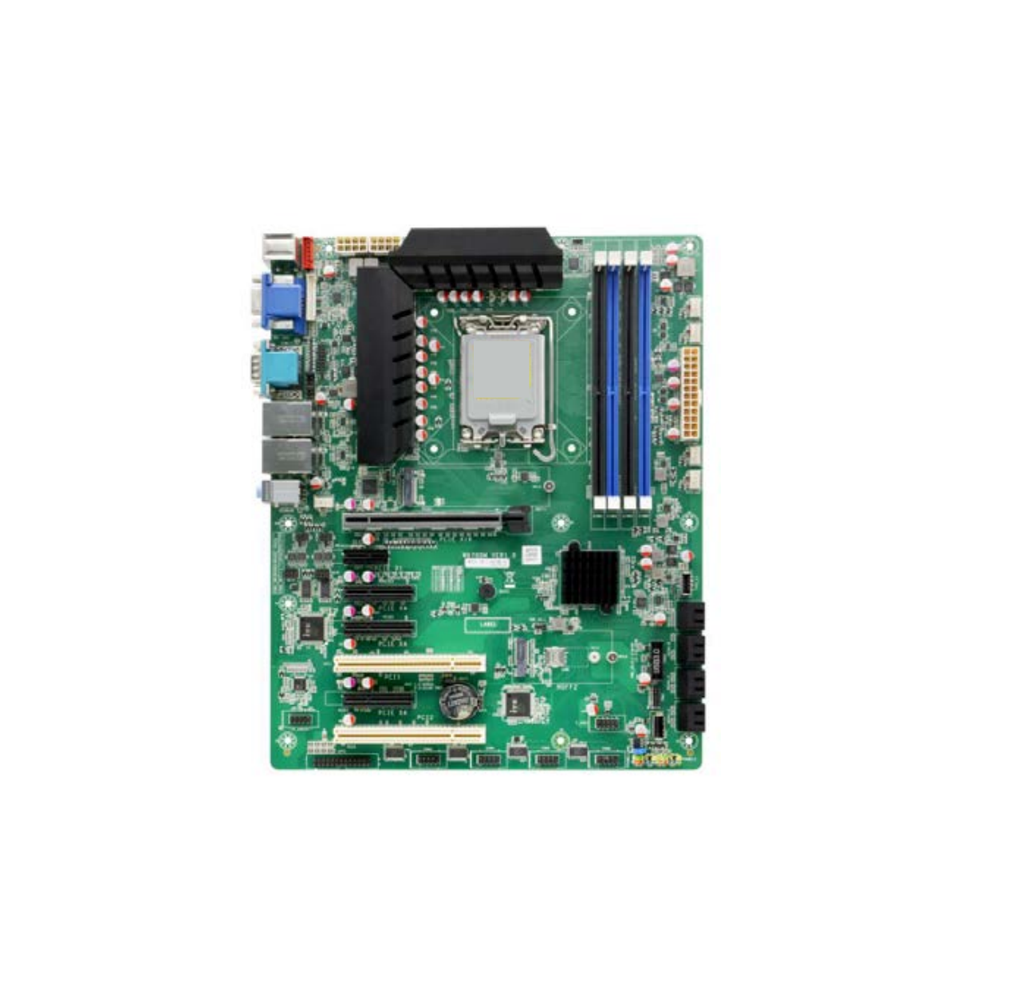

STS-671-IMB Industrial Motherboard

STS-671-IMB Industrial Motherboard

🧩 Model Overview: STS-671-IMB

🔧 CPU & Chipset

• Socket Type: LGA1700

• Supported CPUs: 12th/13th/14th Gen Intel® Celeron®/Pentium®/Core™ i3/i5/i7/i9

• Chipset: Intel® Q670

💾 Memory

• 4× DDR4 DIMM slots

• Dual-channel up to 3200MHz

• Max Capacity: 128GB

📺 Display

• Integrated Intel® HD Graphics

• DirectX12.1, OpenGL4.5

• Supports 4K display

• Ports:

  • 1× VGA interface (max: 1920×1200@60Hz)

  • 2× HDMI 1.4 interface (max: 4096×2160@24Hz)

🌐 Network

• 2× Intel® i210AT Gigabit NIC (supports network wake-up, PXE)

💽 Storage

• 8× SATA3.0 ports

• Supports RAID 0/1/5/10

• 1× M.2 slot (Key M, PCIe x4, NVMe SSD)

• 1× M.2 slot (Key B, 2242/2252, supports 4G/5G modules)

🔊 Audio

• Onboard ALC897 7.1-channel audio

• MIC/Line-out/Line-in supported

🧩 Expansion & I/O

PCIe/Slots

• 1× PCIe 4.0 x16

• 3× PCIe X4

• 1× PCIe X1

• 2× PCI slots

Rear I/O Ports

• 1× PS/2 interface

• 1× DB15 VGA

• 1× HDMI1.4

• 2× DB9 RS232 (supports 9th pin power)

• 2× USB2.0

• 4× USB3.2 Gen2x1 (10Gbps)

• 2× RJ-45 Gigabit LAN

• 1× three-layer audio interface (MIC, Line-in, Speaker out)

• 2× USB2.0 (2×5pin)

• 1× vertical USB2.0

Built-in I/O Headers

• 1× USB 3.0 Type-E

• 2× USB3.0 (2×10pin)

• Front panel audio + indicator (2×5pin)

• 1× TPM (2×6pin)

• 4× RS232 serial (2×5pin)

• 1× SIM card slot

• 1× LPT (2×13pin)

Fan/Bios/Watchdog

• 1× 4-pin CPU fan

• 4× 4-pin system fans

• BIOS: 128Mb Flash ROM

• Watchdog: 256 levels (0–255s)

🔌 Power & Environmental Specs

• Power: ATX 24-pin + 8-pin

• Operating Temp: 0°C ~ 60°C

• Storage Temp: -20°C ~ 70°C

• Humidity: 5%–95%, no condensation

• Dimension: 305mm × 245mm
