STS 4-port 10/100/1000BASE-TX PoE + 1G uplink Industrial PoE Switch

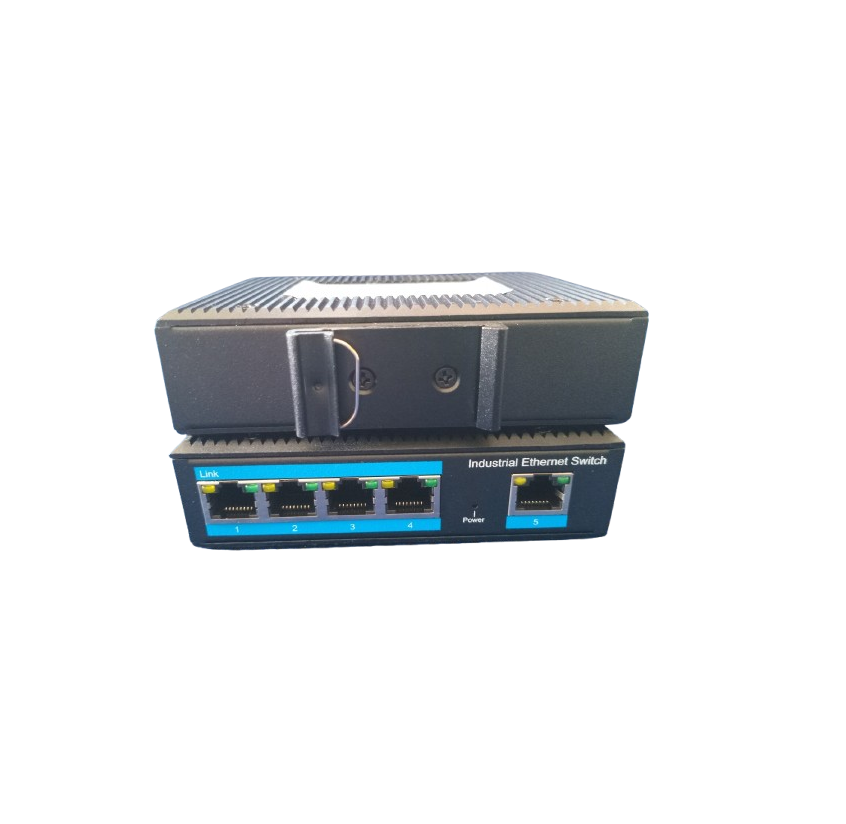

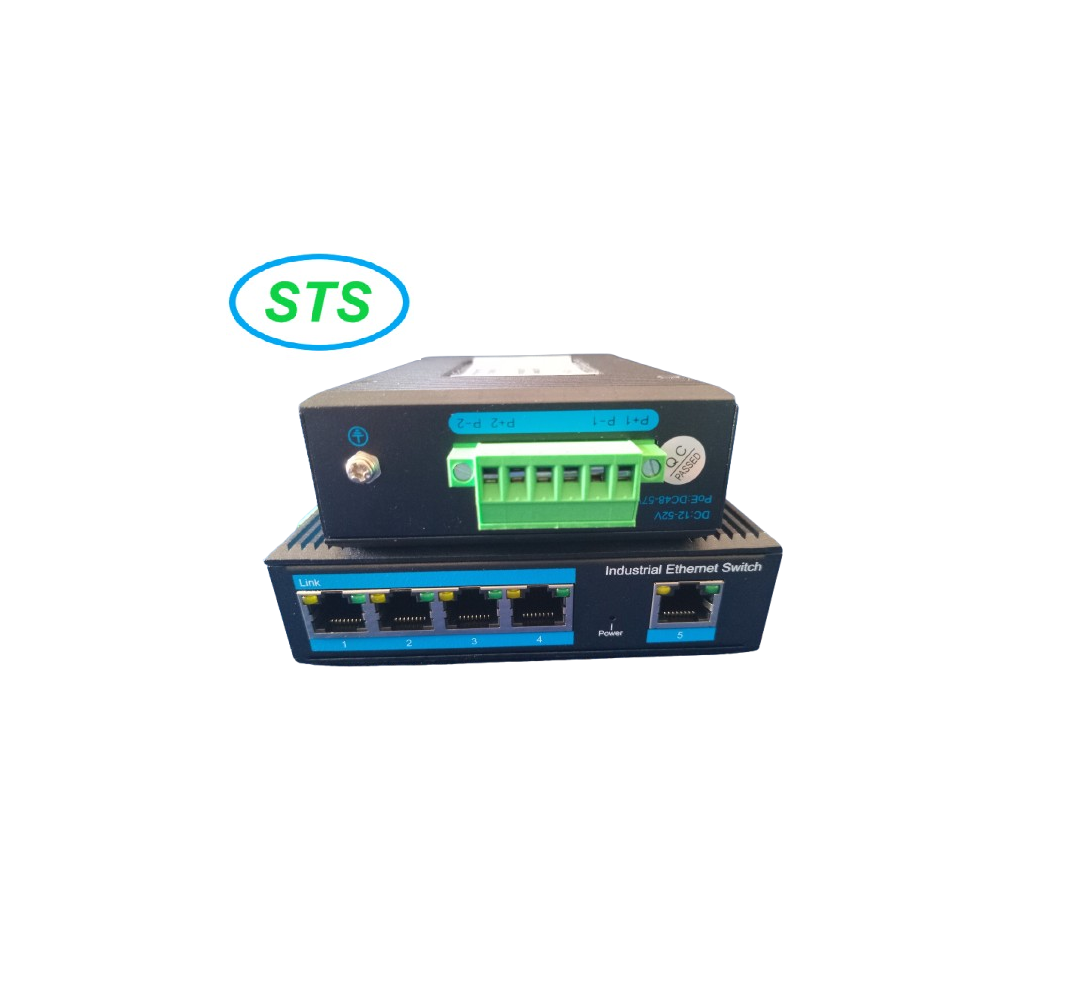

 STS-5U-IPS Industrial PoE Switch

Model: STS-5U-IPS
Type: 4-Port PoE + 1-Port Uplink | Gigabit | Industrial Grade

🔌 Interfaces & Ports

• Total Ports: 5 × 10/100/1000Base-TX RJ-45 (Auto-MDI/MDI-X)

• PoE Ports: 4 × IEEE 802.3af/at compliant

  • Max Power Output per Port:

    • 15.4W (IEEE 802.3af)

    • 30W (IEEE 802.3at)

• Uplink Port: 1 × Gigabit Ethernet port for high-speed uplink

• PoE Detection: Auto-detects IEEE 802.3af/at devices

• Power Type: End-span (Mid-span optional)

• Power Pin Assignment: 1/2 (+), 3/6 (−)

• Output Voltage: DC 48V

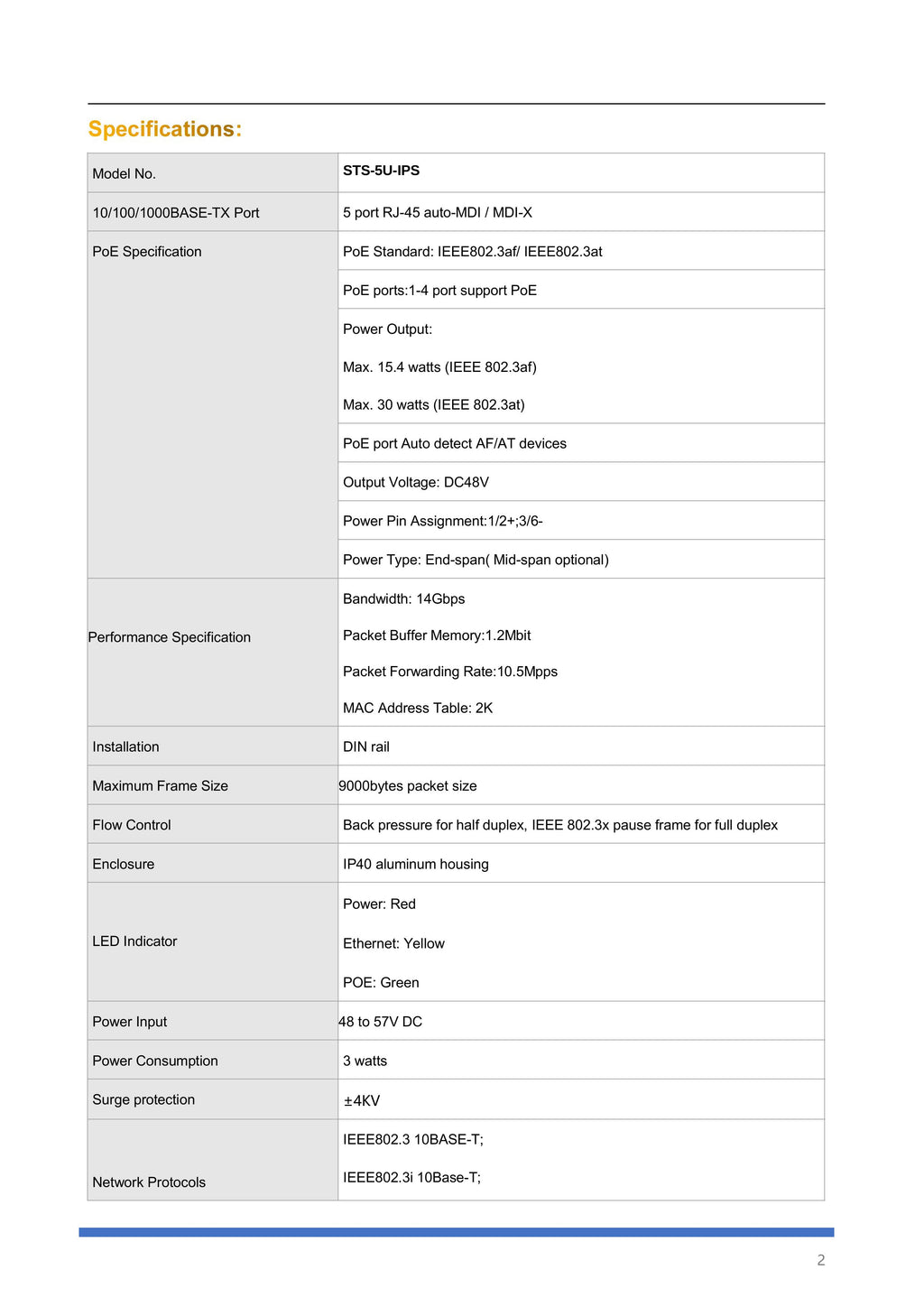

⚙️ Performance Specifications

• Switching Bandwidth: 14 Gbps

• Packet Forwarding Rate: 10.5 Mpps

• MAC Address Table: 2K entries

• Packet Buffer Memory: 1.2 Mbit

• Max Frame Size: 9000 bytes (Jumbo Frame)

• Flow Control:

  • Back pressure for half-duplex

  • IEEE 802.3x pause frame for full-duplex

🌐 Industrial Design & Reliability

• Housing: IP40-rated rugged aluminum casing

• Mounting: DIN-rail and wall-mountable

• Surge Protection:

  • Ethernet Ports: ±6KV ESD

  • Power Line: ±6KV EFT

• Operating Temperature: -40°C to +80°C

• Power Input: 48V to 57V DC (Redundant power input supported)

• Power Consumption: < 3 Watts

• Stability: Designed for outdoor/harsh industrial use

  • Shock, vibration, and free-fall resistant

🔋 LED Indicators

📡 Network Protocol Support

• IEEE 802.3 (10BASE-T)

• IEEE 802.3u (100BASE-TX)

• IEEE 802.3ab (1000BASE-T)

• IEEE 802.3af / 802.3at (PoE/PoE+)

✅ Use Cases

Perfect for:

• Industrial IP Cameras

• Outdoor Wireless Access Points

• VoIP Phones

• Harsh environment network extensions

• Smart Cities & IoT Infrastructure
