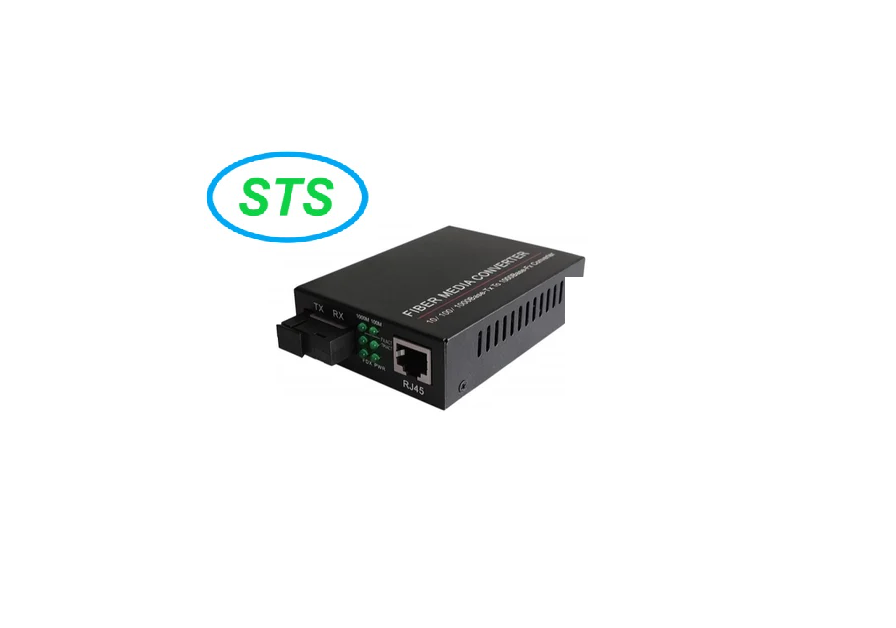

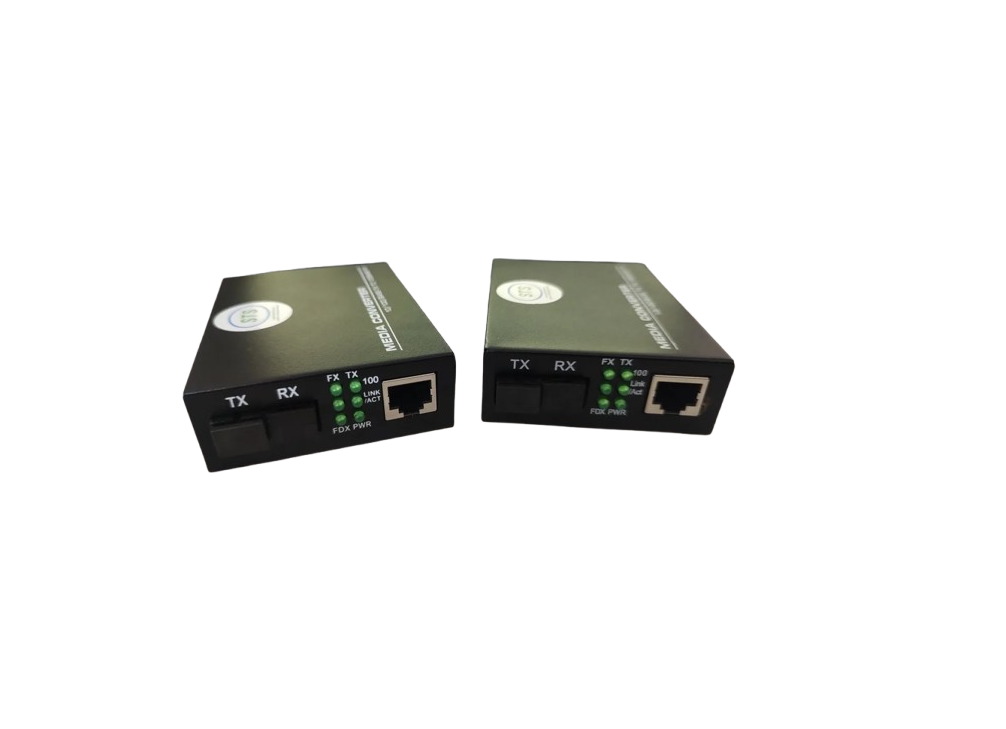

STS 1SC 1RJ45 1000M MM Dual fiber Media Converter

STS 1SC 1RJ45 1000M MM Dual fiber Media Converter

The STS-RJ45-FMC10/100/1000M adaptive fiber media converterthrough 100Base-TXor 1000Base-TXto 100Base-FX photoelectric conversion between the traditional 100M Ethernet or 1000M Fast Ethernet through the Fast Ethernet fiber optic link extended to 120 km range, to meet the long-distance, high-speed , High-bandwidth fast Ethernet working group user needs, the product performance is stable and reliable, designed to meet the Ethernet standards, and anti-lightning protection measures, especially for telecommunications, mobile, China Unicom, safe city, radio and television, railway, military, financial securities, customs, civil aviation, maritime transport, electricity, water conservancy and oil fields and other broadband data network and require high reliability data transmission or the formation of IP data transmission network area, it is the best application equipment for broadband campus network，intelligent broadband district fiber to the floor , Fiber to the home and video surveillance .

Product Specification

• Standard Protocol:
  IEEE 802.3, IEEE 802.3z, IEEE 802.3u,
  IEEE 802.3x, IEEE 802.3ab

• Band Width:
  RJ 45 Port: 10/100/1000M
  Optical Port: 1.25G

• Operation Mode:
  Full-duplex mode, with auto-negotiation capability

• Connectors:
  UTP: RJ45
  Fiber connector: SC/FC/ST

• LED Indicators:
  1000M, 100M, PACKET, TRAFFIC, PWR, FDX

• UTP Cable:
  Cat5 UTP – maximum 100m

• Fiber Cable:
  9/125μm (max distance up to 20~120km)
  62.5/125, 50/125μm (max distance up to 2km)

• Power Supply:
  External power supply: 5V, 2A
  Internal power supply: DC 48V, AC110–250V 5L

• Power Consumption:
  ≤5W

• Working Environment:
  Work temperature: -20℃ ~ +70℃
  Storage temperature: -40℃ ~ +70℃
  Humidity: 5%~95% RH, non-condensing

• MTBF (Hours):
  ≥100000

• Structure / Dimensions (mm) / Weight:
  External power supply: 87mm70mm25mm / 0.14kg
  Internal power supply: 140mm110mm30mm / 0.8kg
  Socket card: 135mm122mm31mm / 1.05kg

• Certification:
  CE
