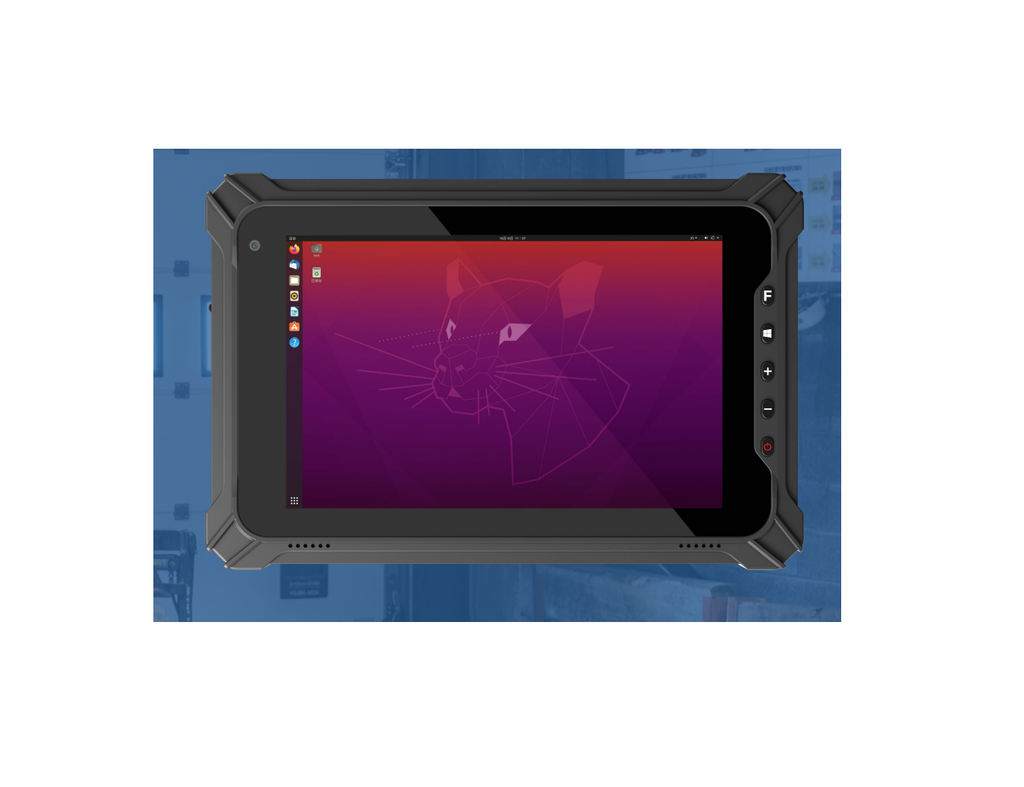

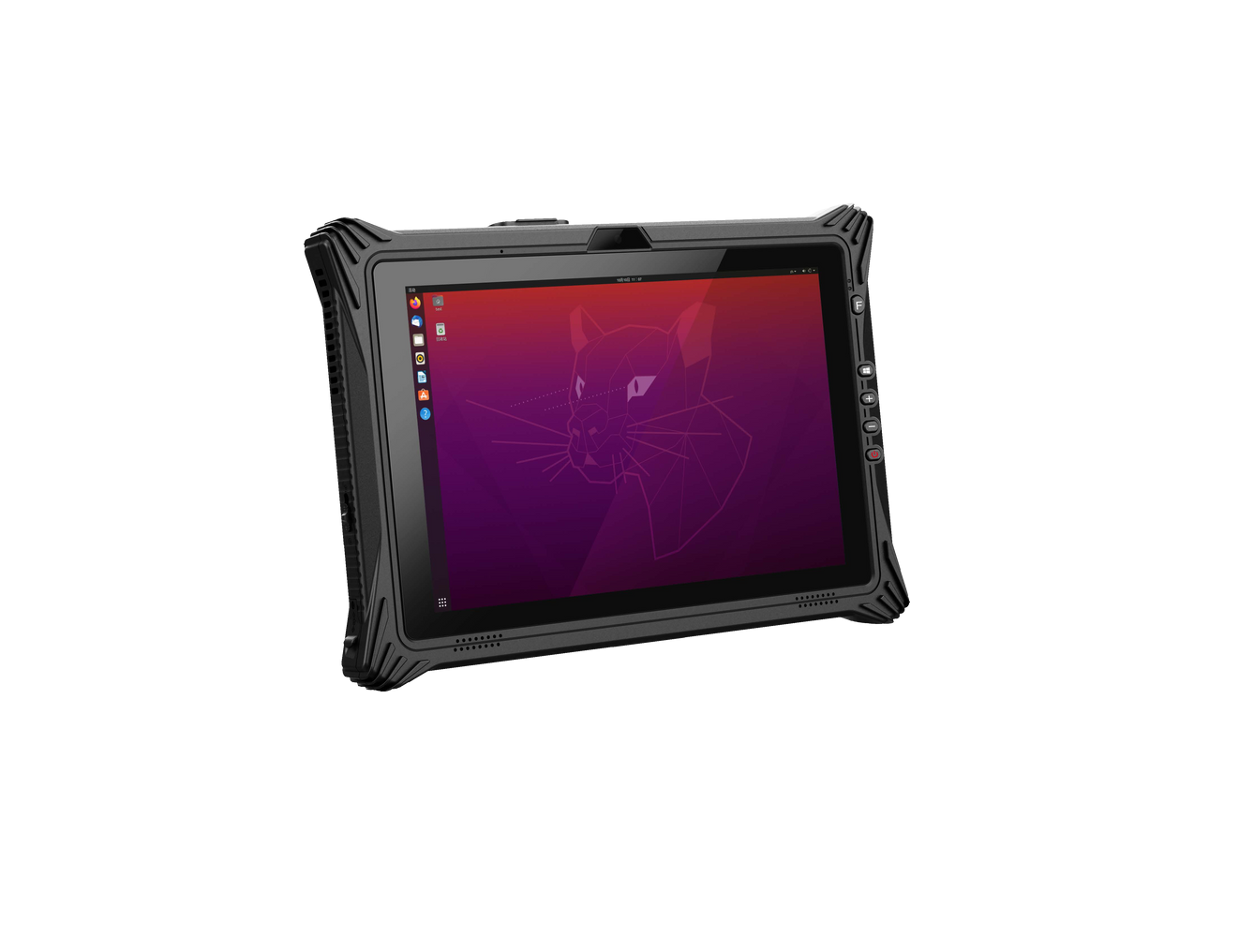

STS 10.1 INCH LINUX RUGGED TABLET PC

Performance
·Intel Jasper Lake processor Celeron N5100
·10.1 inch IPS screen, 1920x1200 FHD, 550nits
·5-point capacitive touch

Communication
·High speed communication as 2.4G/5.8G WIFI,
4G LTE, BT5.0 and etc
·Efficient file transfer rely on advanced USB Type-A/Type-C
3.0/3.1, I/O port·Optional high performance 2D imager designed to data capture

📌 Specification Parameter

Basic Parameters

Dimension: 289.9 × 196.7 × 27.4 mm
Weight: Device unit 1140 g (≈ 1.14 kg)
Device Color: Black

LCD: 10.1‑inch IPS, 16:10 aspect ratio, 1200 × 1920 resolution, 700 nits brightness
Touch Panel: 10‑point G+F+F capacitive touch screen

Camera: Front 2.0 MP, Rear 8.0 MP

I/O Ports:
USB 3.0 Type-A × 1, USB Type-C × 1, SIM card slot × 1, TF card slot × 1, HDMI 2.1a Mini × 1, 12‑pin Pogo Pin × 1, Φ3.5 mm standard earphone jack × 1, Φ5.5 mm DC jack × 1

Power: AC 100–240 V, 50/60 Hz input; Output DC 19 V / 3.42 A

Battery

RTC battery: 3 V / 210 mAh
Removable battery: 7.4 V / 700 mAh built‑in Li‑polymer; optional 7.4 V / 5000 mAh removable battery
Endurance: ~4.5 hours (50% volume, 200 lumens brightness, playing 1080p video by default

Performance Parameters

CPU: Intel Core i5‑1235U
RAM: 16 GB
Storage: 128 GB

Network Connections

Wi‑Fi: Wi‑Fi 6 (802.11 a/b/g/n/ac/ax), dual‑band 2.4 GHz + 5.8 GHz
Bluetooth: BT 5.1, up to ~10 m range
4G / 5G (optional):
• LTE‑FDD: B1/B3/B5/B7/B8/B20
• LTE‑TDD: B40
• WCDMA: B1/B5/B8
• GSM: 900/1800 MHz
• 5G SA & NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79
GNSS: Supports GPS, Glonass; optional Beidou

Reliability Metrics

Operating temperature: −20 °C to +60 °C
Storage temperature: −30 °C to +70 °C
Humidity: up to 95%, non‑condensing
Rugged features: IP65 certified, complies with MIL‑STD‑810G
Drop resistance: 1.22 m free‑fall to wooden floor
Electrostatic discharge: ± 8 kV contact, ± 15 kV air discharge

Extension Modules (choose 1 of 4)

• 2D scan engine (optical resolution 5 mil, scan speed ~50 moves/sec)
• RJ45 Gigabit Ethernet port (10/100/1000 Mb) × 1
• DB9 (RS232) serial port × 1
• USB 2.0 × 1

Other features:
Optional 13.56 MHz NFC reader (card read distance ~4 cm), fingerprint reader

Features
·Symmetric speakers. More immersive, more clear
·User-friendly buttons designed for efficient action

Reliability
·Enhanced rugged corners withstand shock and impact
·IP65 Waterproof and Dustproof, MIL-STD-810G certified
·Removable 5000mAh battery & New battery-free working mode
