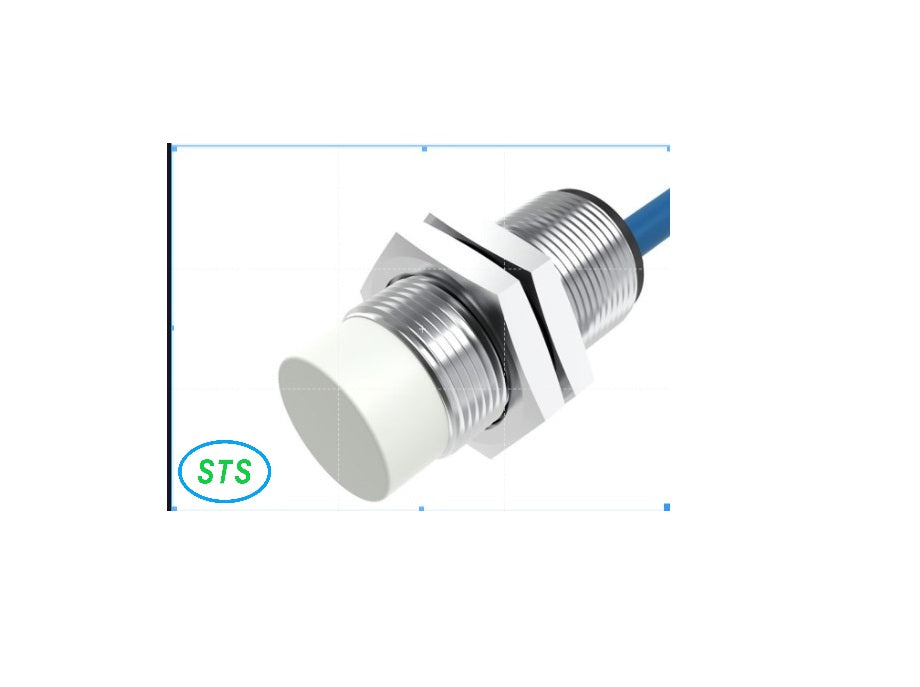

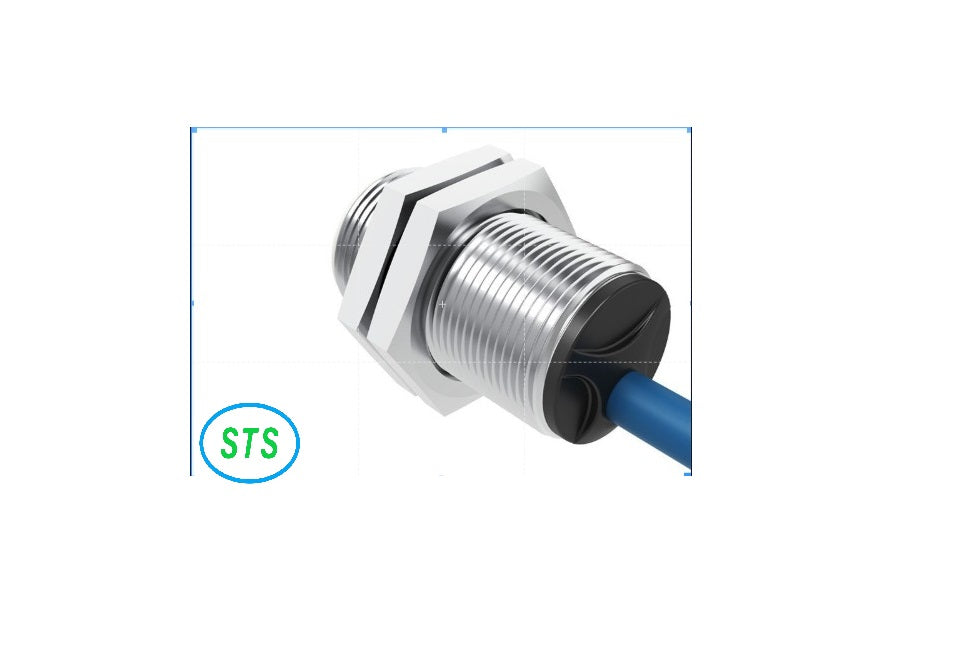

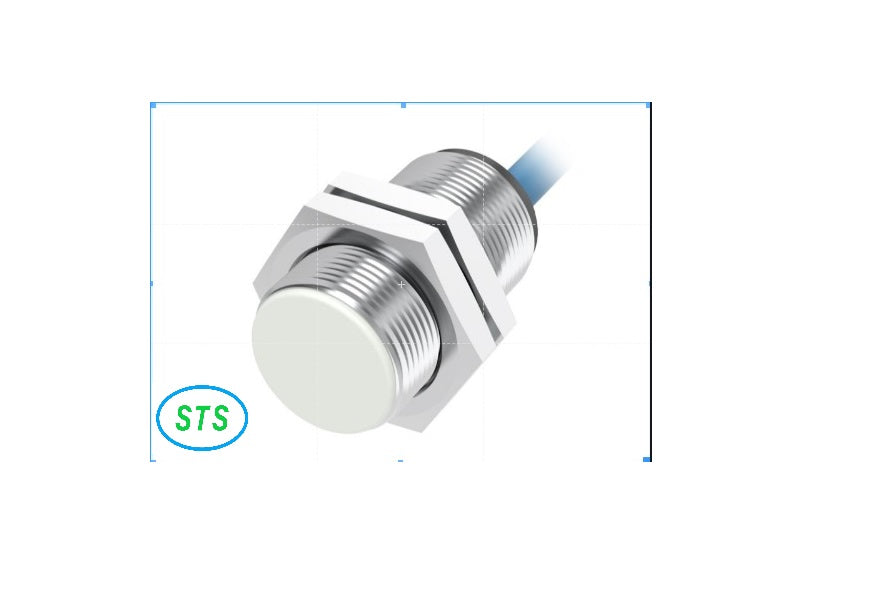

NAMUR inductive sensors ST18X series
Sale price
Rs. 1,500.00
Regular price
Rs. 2,999.00
Reliable shipping
Flexible returns
NAMUR inductive sensors ST18X series
FEATURES
◆ Non-contact detection, safe and reliable;
◆ Low voltage and current output, suitable for explosive area;
🧲 Proximity Sensor Technical Specifications
| Part Number | ST18xAPC5N4PR24 | ST18x4K8N4PR24 |
|---|---|---|
| Mounting | Flush | Non-flush |
| Rated Distance (Sn) | 5 mm | 8 mm |
| Assured Distance (Sa) | 0...4 mm | 0...6.4 mm |
| Dimensions | M18×1 / 61.5 mm | M18×1 / 78.5 mm |
| Output | NAMUR | NAMUR |
| Supply Voltage | 8.2 VDC | 8.2 VDC |
| Standard Target | Fe 18×18×1 mm | Fe 24×24×1 mm |
| Switching Frequency (Fr) | 1000 Hz | 700 Hz |
| Output Current | Typical ≤1 mA | Voltage drop ≤2.2V |
| Ambient Temperature | –25°C ~ +70°C | –25°C ~ +70°C |
| Ambient Humidity | 35 ~ 95% RH | 35 ~ 95% RH |
| Voltage Withstand | Not specified | Not specified |
| Insulation Resistance | ≥ 50 MΩ (500 VDC) | ≥ 50 MΩ (500 VDC) |
| Vibration Resistance | 16.6 Hz (1 mm) | 16.6 Hz (1 mm) |
| Repeat Accuracy (Sr) | ≤ 3% | ≤ 3% |
| Hysteresis Range (Sr) | 1 ~ 20% | 1 ~ 20% |
| Housing Material | Nickel-plated brass | Nickel-plated brass |
| Degree of Protection | IP67 | IP67 |
| Connection Type | 2m PVC cable | 2m PVC cable |
