Industrial edge AI computer NVIDIA Jetson Orin NANO Module (ARM A78AE+ 8GB DDR5L)

Industrial edge AI computer NVIDIA Jetson Orin NANO Module

(ARM A78AE+ 8GB DDR5L)

Model: STSNNAF3RP

STSNNAF3RP are industrial embedded high-performance edge AI machines based on NVIDIA Jetson Orin NANO(8GB) module. With NVIDIA module and self-developed carrier board, combined with the powerful expansion bus of the module, it not only realizes the small size requirements of the whole machine, but also shows Nano's super reasoning and processing ability. They are small edge computing machines suitable for high-performance video, image (Human, object, word and other feature elements)
recognition and reasoning operations. Match wired or wireless networks with cloud
servers to perfectly realize the solutions of cloud learning and endpoint reasoning in AI
and IOT industries. These industrial computers are very suitable for AI and IOT intelligent
industries, and are widely used in security monitoring, smart community, smart campus,
UAV, unmanned retail, robot, smart medical and other fields.

Model: STSNNAFSRP – Main Technical Specifications

Core Components

• CPU: 6-core ARM® 8.2 Cortex-A78AE

• GPU: Ampere architecture, 1024 CUDA cores, 32 Tensor cores

• Video Encode: 1080p30 supported via CPU cores with software

• Video Decode:

  • H.265 (HEVC), H.264 (VP9, AV1)

  • 4K @ 60 fps, 2K/1080p @ 30 fps

• Memory: 8GB 128-bit LPDDR4x

• Storage: NVMe SSD

Backplane Interface

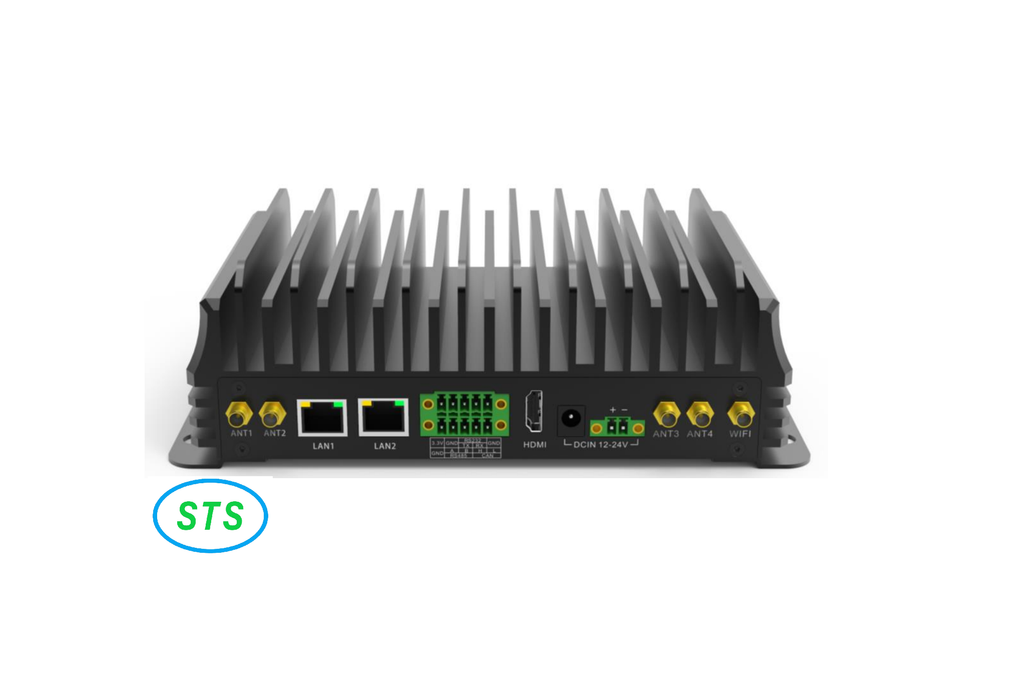

• Network: 2× RJ45 Giga LAN

• WiFi: Optional (1× WiFi/4G/5G module optional)

• Extend:

  • 1× Mini PCIe (for 4G/5G module)

  • 1× M.2 M-Key 2280 slot (for SSD)

• COM Ports:

  • 1× RS485 (2×5Pin Phoenix)

  • 1× RS232 (2×5Pin Phoenix)

• CAN: 1× CAN (2×5Pin Phoenix)

• GPIO: 6× GPIOs (Bidirectional, 3.3V/5V/1.8V logic)

• HDMI: 1× HDMI

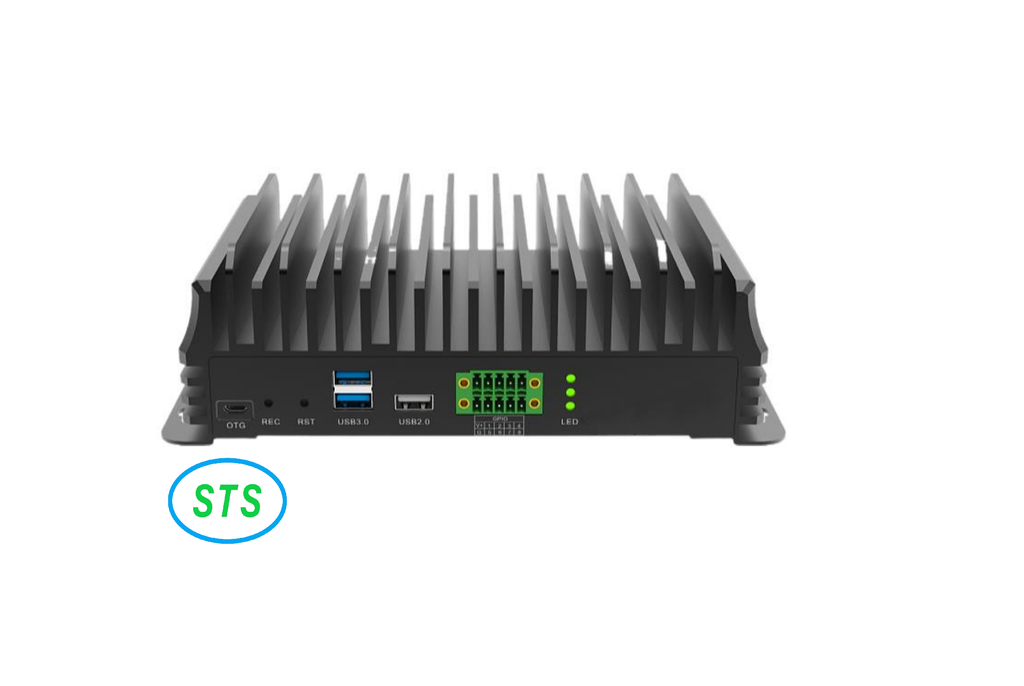

• USB Ports:

  • 2× USB 3.0

  • 1× USB 2.0

  • 1× USB OTG

• LEDs:

  • 1× Green (power)

  • 2× Green (controlled by GPIO)

• DC IN: 2-Pin Phoenix (DC input, supports 12–24V)

• Button: 1× Recovery, 1× Reset

Environmental Ratings

• Operating Temperature: -30°C to 65°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5%–95% RH, no condensation

Power & Mechanical

• Power Consumption:

  • Idle: ~5W

  • Full Load: ~15W

• Form Factor (L×W×H): 300mm × 255mm × 100mm

• Weight (Bare Metal): 1.6 kg

• With Packaging: 2.0 kg

• Heat Dissipation: Iron-grey aluminum shell with sandblasted finish, top fin design

• OS Support: Linux JP5.1.1
