INDUSTRIAL BOX PC WITH 8gb RAM , 128gb SSD

Model: BPC-10STSFL Industrial PC

🧩 Mechanical & System Overview

• Case Dimensions: 210 × 200 × 50 mm (L × W × H)

• TDP: 15W (Low power consumption, energy-efficient)

• Chipset: Integrated single-chip architecture within CPU

• Cooling: Fanless design, integrated chassis cooling for silent operation and fast heat dissipation

• Power Supply: DC 12V/19V supported via 5.5 × 2.5 mm port

• Battery: 3V CR2032 button cell

• BIOS: AMI BIOS with support for power-on, scheduled power-up/down, remote switch, and smart device recognition

🧠 Performance

• Memory: 2 × SODIMM DDR4 1600MHz (1.35V)

  • Maximum Capacity: Up to 32GB

• Graphics: Integrated Intel® HD Graphics 620

• Sound: Realtek ALC662 HD 6-channel digital audio decoder

🖥️ Display Capabilities

• Display Modes:

  • Single display

  • Dual display (clone & extended mode)

  • DOS single display support

• Media Support: H.264, 3D, 2K, 1080p, FHD playback

• Ports:

  • 1 × VGA (DB15) – up to 1920 × 1200 @ 60Hz

  • 1 × HDMI 1.4 – up to 4096/3840 × 2160 @ 24/30Hz

🌐 Networking

• LAN: 2 × RJ45 (Realtek 8111F Gigabit Ethernet)

• Features: Wake-on-LAN, PXE boot

• Wi-Fi:

  • 2 antenna holes

  • 1 × Mini PCIe slot (PCIE signal)

  • USB signal required for 3G/4G/Bluetooth must be requested in advance

🔌 I/O Interfaces

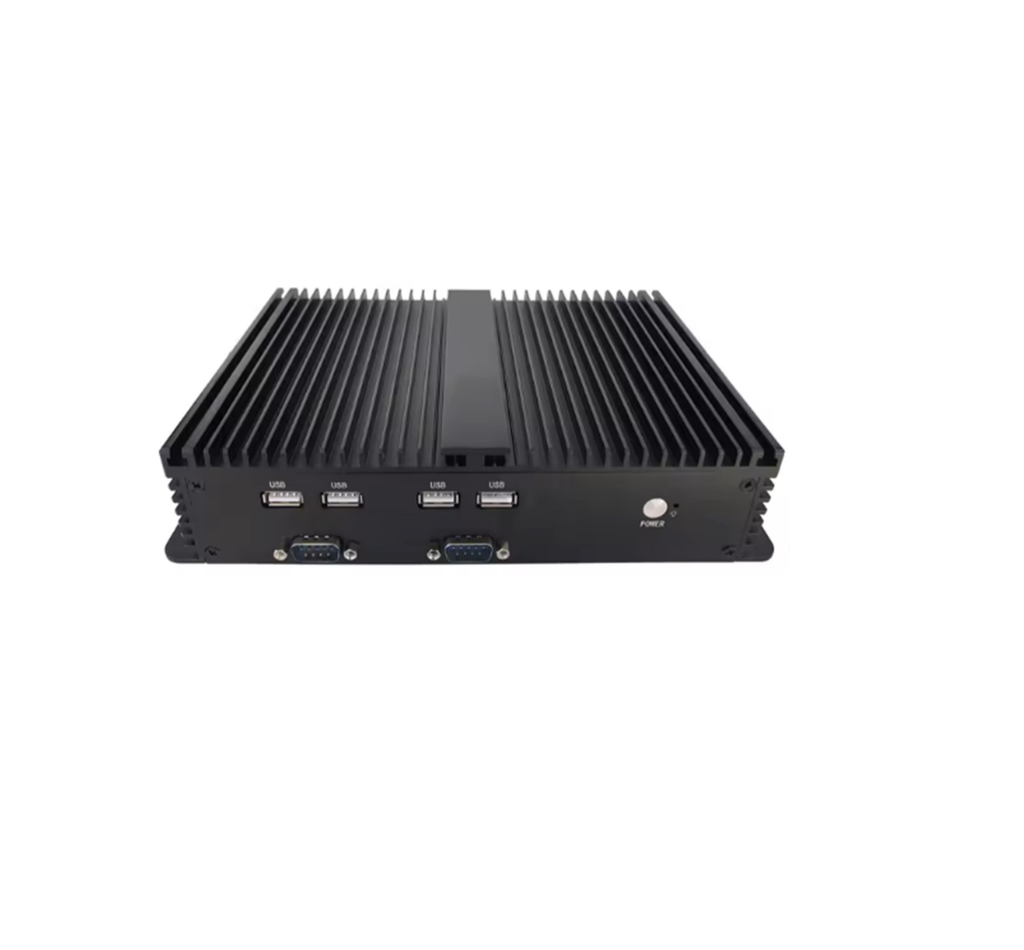

External Ports

• 1 × DC-In

• 1 × HDMI

• 1 × VGA

• 2 × LAN

• 2 × COM

• 6 × USB

• 1 × Line-Out

• 1 × Mic-In

Internal / Built-in Pins

• VGA, HDMI, LVDS

• BKLT_CONN, BKLT_CTRL

• INT_SPK, F_AUDIO, F_PANEL

• AUTO_SW, CLR_CMOS

• SIM card slot

• SYS_FAN, CPU_FAN

• Optional GPIO (upon request)

💾 Storage

• Default: M.2 2280 (Optional: 2242)

  • SATA signal by default

  • Can be modified to NVMe (PCIe)

• Additional Port: Standard SATA 3.0, max speed 6.0 Gbps

🔄 Serial Communication

• COM1, COM3–COM6: RS232

• COM2: RS232/RS422/RS485

🌡️ Environmental Specifications

• Operating Temperature: -20°C ~ +60°C

• Humidity: 5% – 95% RH (non-condensing)
