Fiber To Copper Media Converter, Model: MCSTS-1000-1GX1GT

Fiber To Copper Media Converter, Model: MCSTS-1000-1GX1GT

1*1000Base-X, 1*10/100/1000Base-TIndustrial Media ConverterInput Voltage: DC 9V-24VOperating Temperature: -35 +75Shell: IP40 protection, fanless designTest Report: CCC, RoHS, FCC, CEAnti-static: 8KV~15KVMTBF: 100000 HoursIP Level IP40Surge protection of Power IEC 61000-4-5 Level 4 (6KV/4KV) (8/20us)Surge protection of Ethernet port IEC 61000-4-5 Level 4 (6KV/4KV) (10/700us)ESD IEC 61000-4-2 Level 4 (8K/15K)

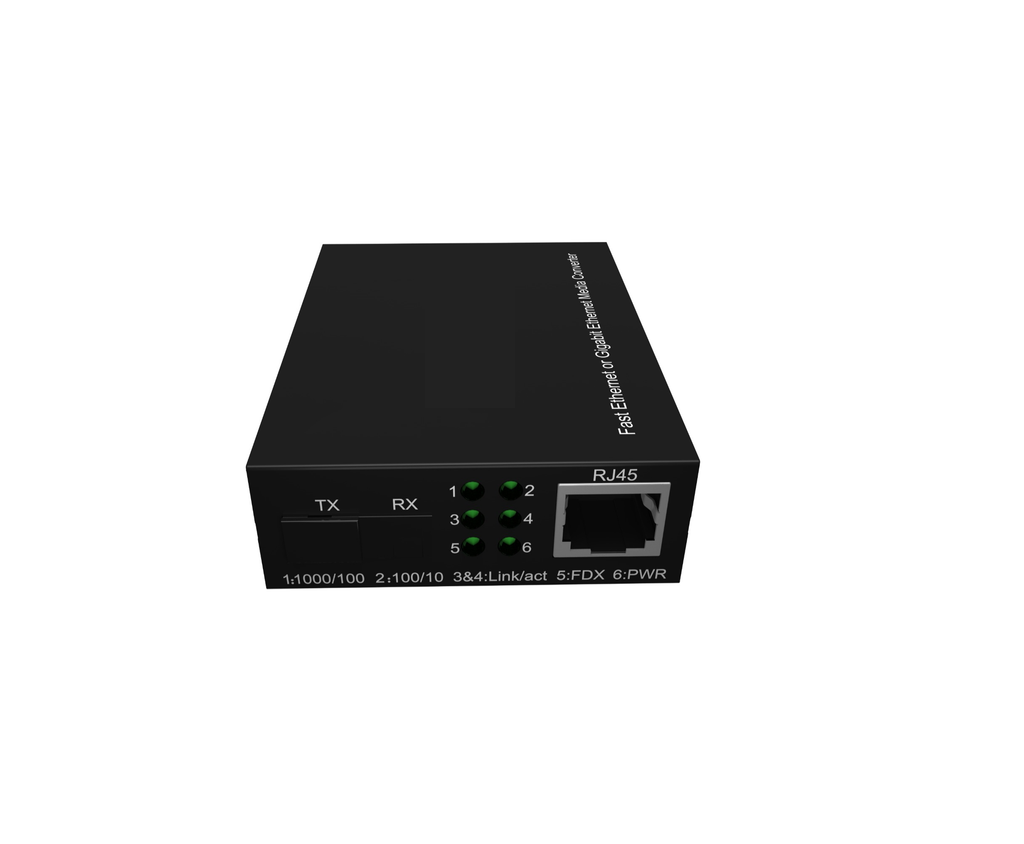

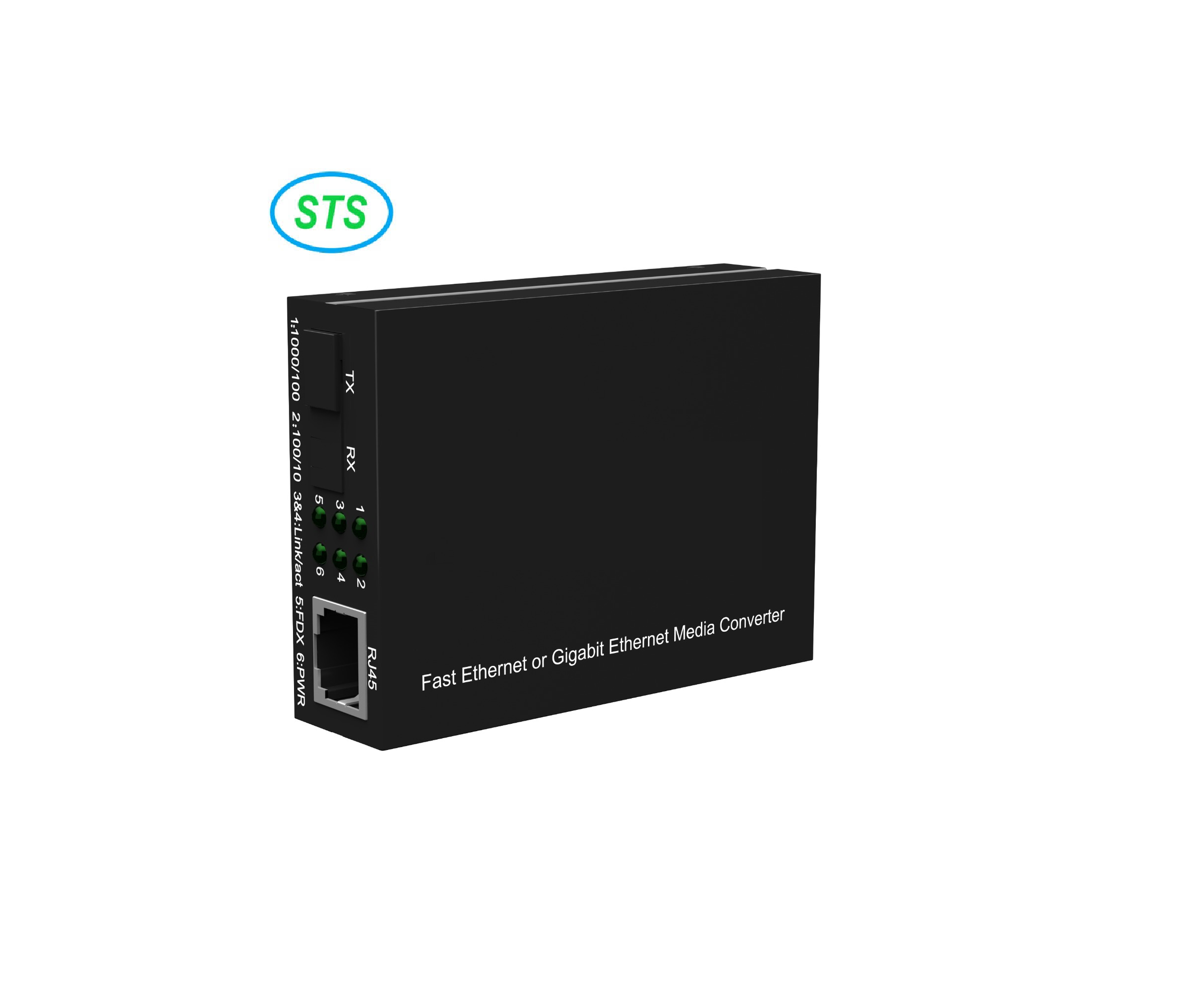

MCSTS-1000-1GX1GT Industrial Media Converter

Main Features

• 11000Base-X, 110/100/1000Base-T Industrial Media Converter

• Input Voltage: DC 9V–24V

• Operating Temperature: -35°C ~ +75°C

• Shell: IP40 protection, fanless design

• Test Report: CCC, RoHS, FCC, CE

• Anti static: 8kV ~ 15kV

• MTBF: 100000 Hours

Product Description

This device is 1* 1000Base-X & 1*10/100/1000Base-T Industrial Media Converter.
Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.
It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Product Parameters

Provider Mode Ports

• Fixed port: 11000Base-X, 110/100/1000Base-T

• Power Interface: Phoenix terminal

• LED Indicators: PWR, Copper Link/ACT, FX Link/ACT

Cable Type & Transmission Distance

• Twisted pair: 0~100m (Cat5e/Cat6/Cat6A)

• Monomode optical fiber: 2KM/20KM/40KM/60KM

• Multimode doublet fiber: 550m

Electrical Specifications

• Input voltage: DC 9~24V

• Total power consumption: ≤2.1W

Layer 2 Switching

• Switching capacity: 1G

• Packet forwarding rate: 1.48Mpps

• MAC address table: 8K

• Buffer: 1MB

• Forwarding delay: <15us

• MDI/MDIX: Support

• Flow control: Support

• Jumbo Frame: Support (10K bytes)

• MTBF: 100000 Hours

Environment

• Operating temperature: -35°C ~ +75°C

• Storage temperature: -40°C ~ +85°C

• Relative humidity: 5%~95% RH, non-condensing

• Thermal methods: Fanless design, natural cooling

Mechanical Dimensions

• Product Size: 776827mm

• Installation: Wall-mounted

• Weight: 0.245 KG

EMC & Ingress Protection

• IP Level: IP40

• Surge protection of power: IEC 61000-4-5 Level 4 (6KV/4KV)

• Surge protection of Ethernet port: IEC 61000-4-5 Level 4 (6KV/1KA)

• ESD: IEC 61000-4-2 Level 4 (8KV/15KV)

Authentication

• CCC/FCC/CE/RoHS
