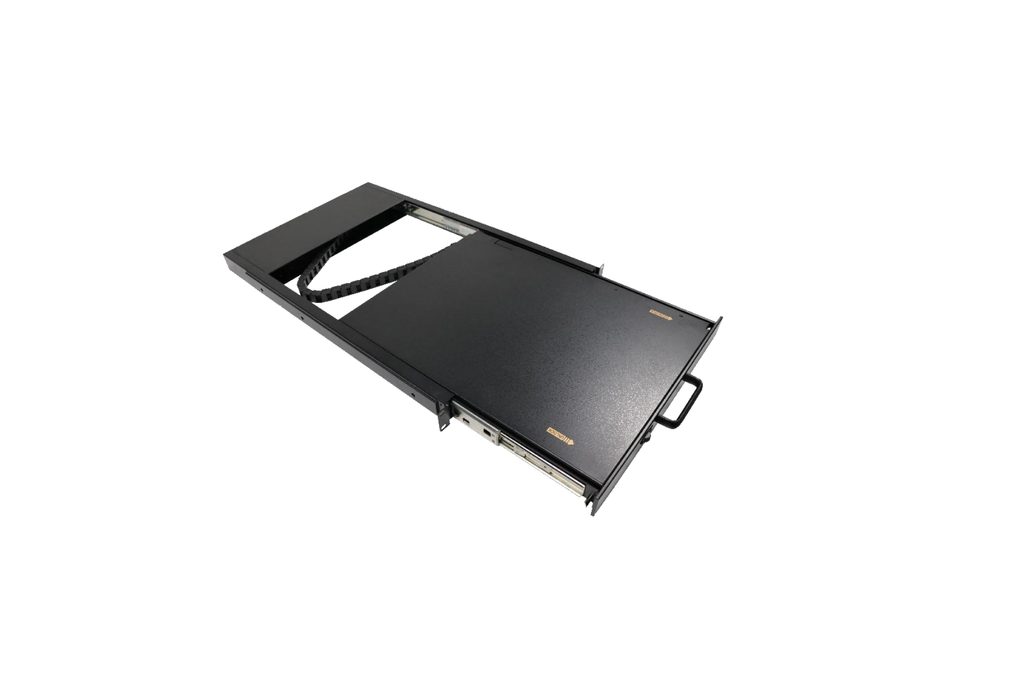

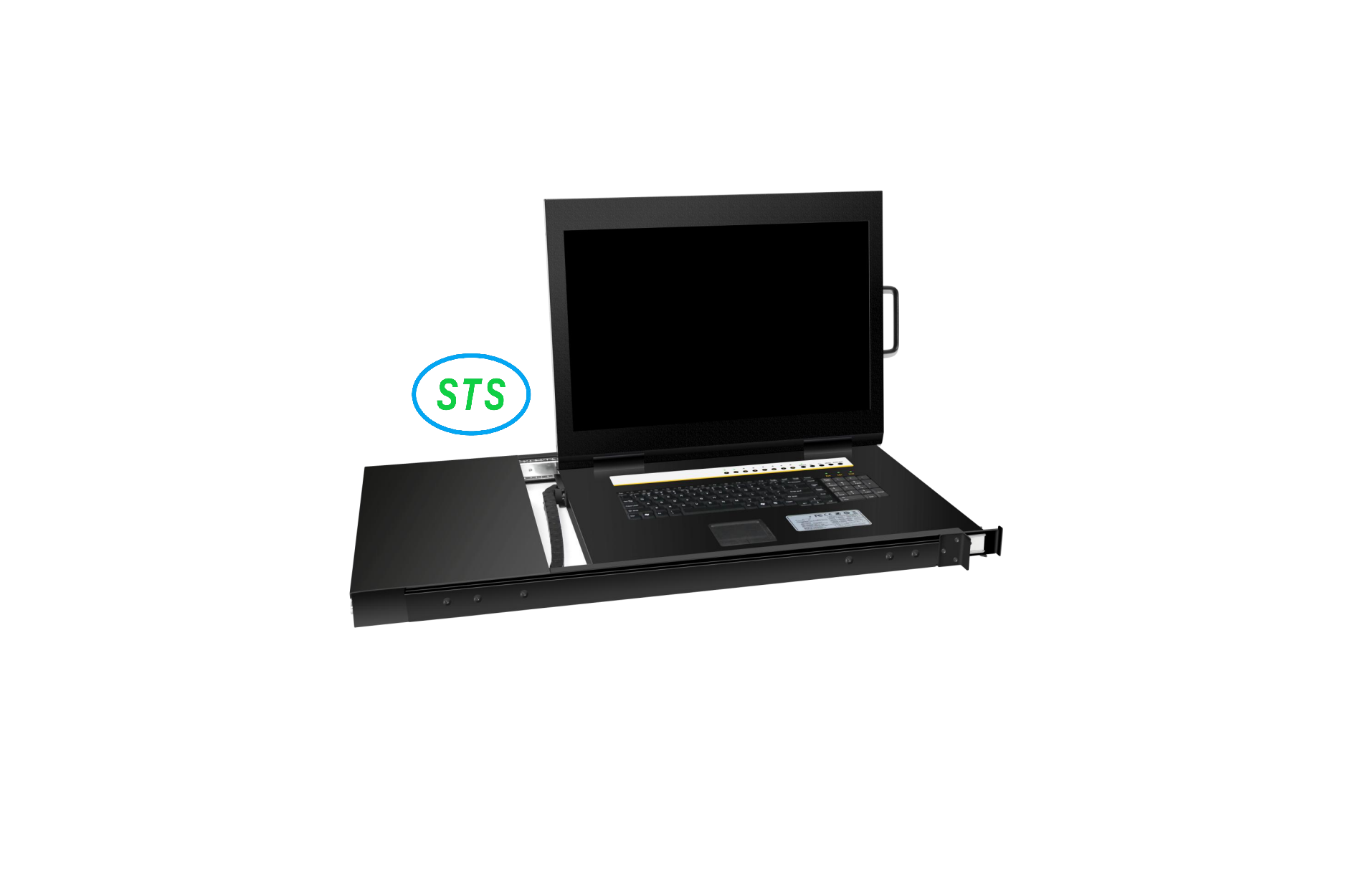

21.5” 1 Port LED VGA KVM Switch

21.5” 1 Port LED VGA KVM Switch

PRODUCT FEATURES

 Integrated Display/Touchpad Mouse/104 Keyboard with Numeric Zone/ElectronicSwitch
 Excellent video effect, best resolution up to 1920*1080@60Hz
 With complete DDC2B function, the screen signal can be detectedwithoutswitching the computer.  Dual Interface PS/2 & USB Keyboard and Mouse Switcher Connects toControlcomputer.  Drawer type. The length can be adjusted to fit each cabinet space.  Password protection, only authorized users can viewand manageonlinecomputers.  Support for various brands of servers and industrial PCS in the computerroom:IBM, DELL, HP, SUN, Lenovo, advantech, EVOC, etc
 Compatible with Microsoft, Linux, Unix and other operating systems.

PACKAGE CONTENT

①1 * 21.5” 1 Port LED VGA KVM Switch
②1 * Power cord
③2 * Rack Mounting
④1 * 1.8m KVM VGA USB Cable

Technical Parameters (Model: ST-21K01US)

• Direct Computer Connection: 1

• Max. Computer Connections: 1

• Connection Cable Port: D-SUB15 Port (Monitor, 2×USB)

• Toggle Scan Time: 1–255 seconds (OSD adjustable)

• Applicable Cabinet Depth: 800–1200mm

• Switch Mode: Hotkey, Button, OSD

• LED Display Screen: 21.5" LED, 1920×1080 resolution, 300 nits brightness, contrast ratio 700:1

• Display Control: Multi-language OSD adjustable for best effect

• Keyboard/Mouse: 104-key mechanical quiet keyboard with touchpad

• Voltage Input: AC 100V–240V, 50Hz–60Hz, Power: 35W

• Housing Material: High strength anti-corrosion steel plate

• Color: Insulation black baking varnish (other colors available)

• Dimensions / Weight: 740mm(D) × 481mm(W) × 44mm(H), 22 KG

• Storage Temperature: -30°C to 70°C

• Operating Temperature: -10°C to 60°C

• Humidity Tolerance: 0% to 80% RH
