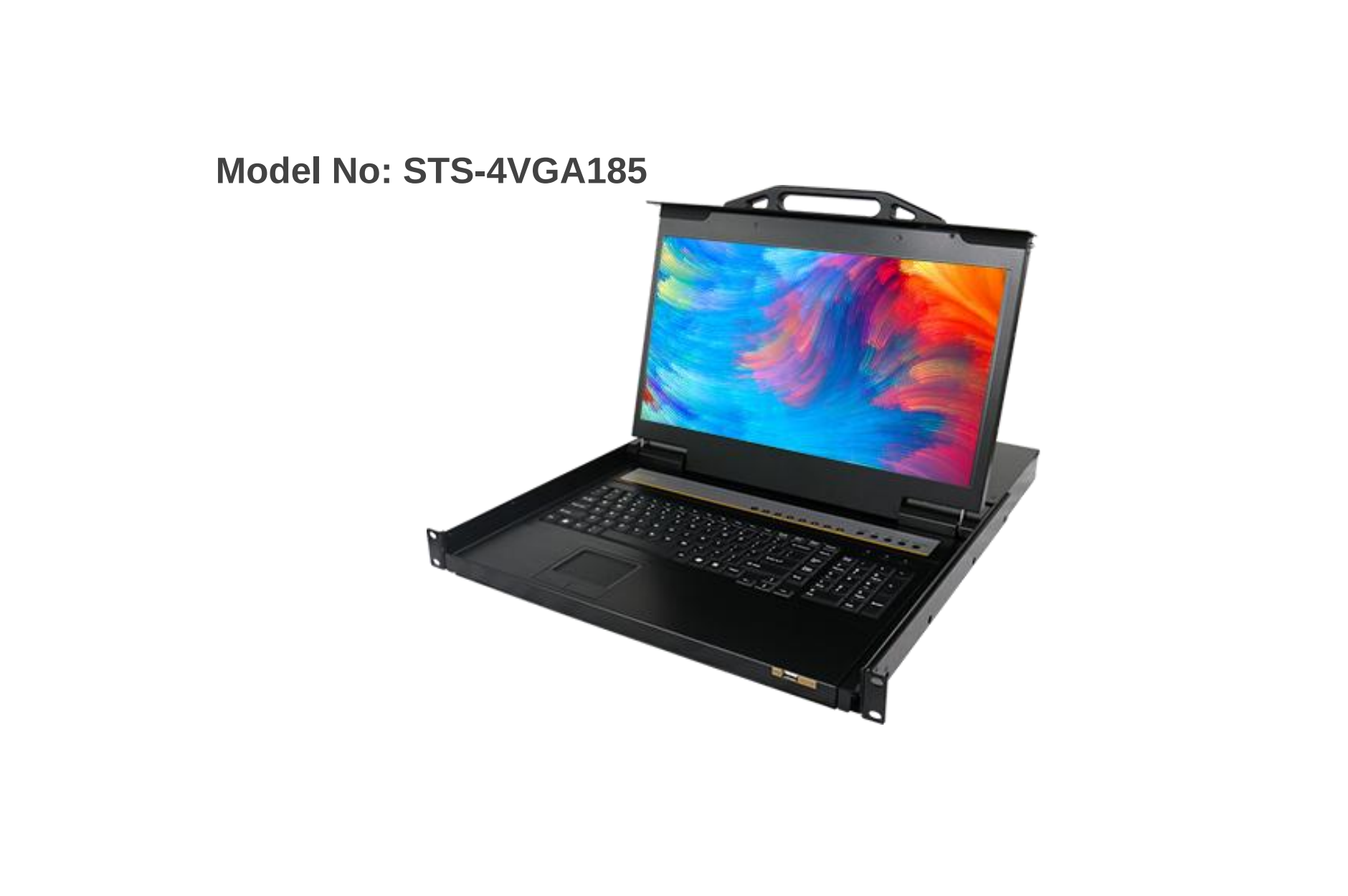

18.5" LED 4 PORT VGA KVM SWITCH
Model No: STS-4VGA185
Product Introduction:
The STS-4VGA185 integrates LED display, ultra-thin keyboard,mouse touchpad, which are integrated in a 1U height unit and installed in a drawer way, whichcansave85%space compared with standard keyboard, monitor and mouse with insufficient space.High quality Grade A 18.5” led (no bright dots) display and a built-inswitchercandirectly manage 4 servers; up to 128 servers can be managed
Package Contents:
1 * 18.5” 4 Port LED VGA KVM Switch
1 * Power cord
2 * Rack Mounting
4 * KVM VGAUSB Cable
Hardware features
-
The 18.5-inch LED HD display and KVM controller are integrated in a single dual-rail body in 1U of rack spaces.
-
The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle.
-
Drawer type. USB HUB function can be realized through the front USB2.0 interface.
Multiple management styles
-
Easily switch between servers by hotkey, panel press, OSD switch.
-
Automatic scan mode is provided to continuously monitor the host selected by the user.
Technical Details
Control function
-
A single group of controllers manages 8 servers.
-
Multiple devices can be cascaded to manage up to 256 computers.
Security features
-
Support multi-user account management and management layers, password protection and search PC server name.
HD resolution
-
18.5-inch LED display, high brightness, high definition, resolution up to 1920x1080 @ 30–60Hz.
Supports various operating systems
-
DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9
