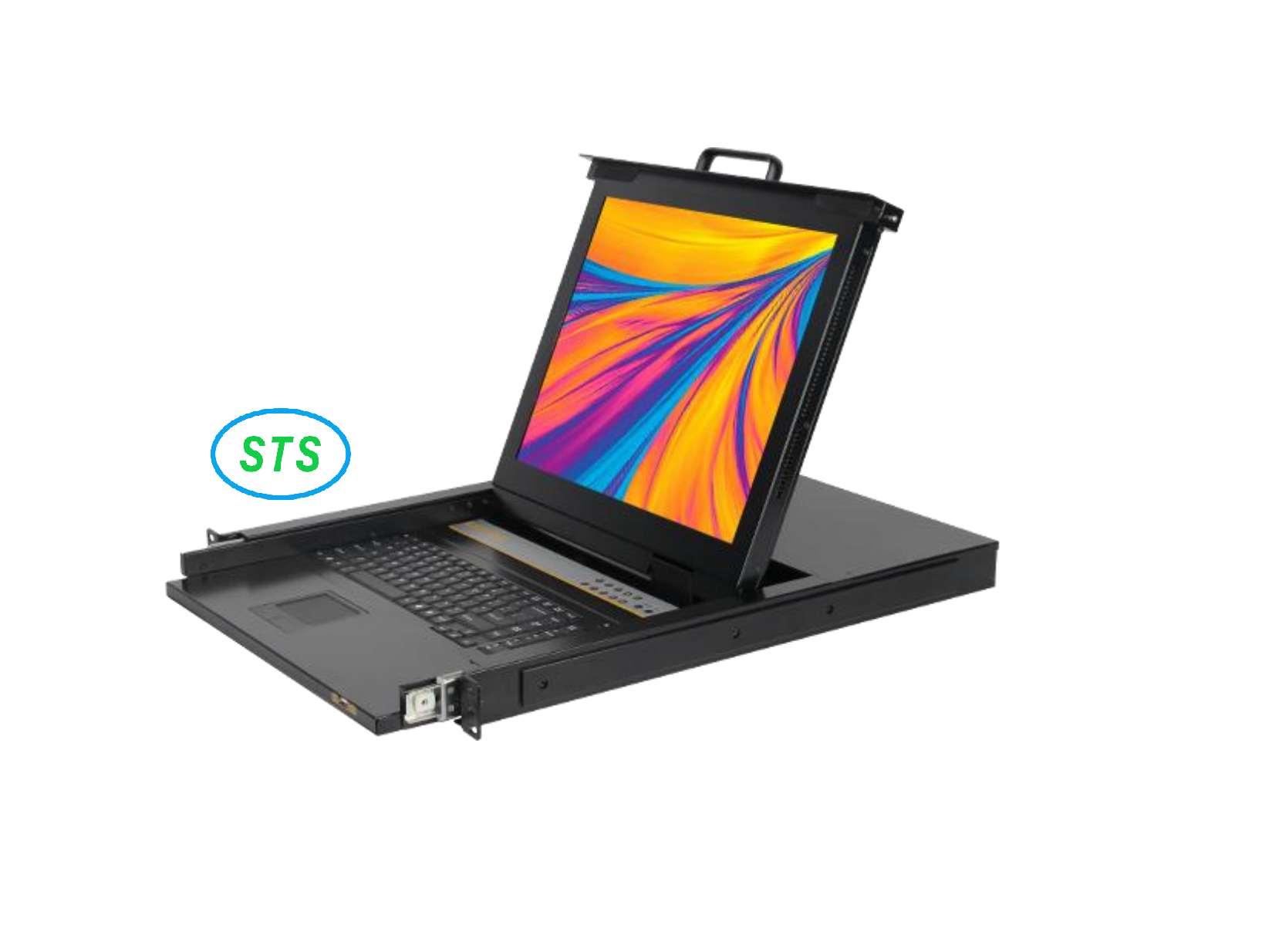

17 Inch 1 Port VGA LED KVM Switch

17 Inch 1 Port VGA LED KVM Switch

PRODUCT INTRODUCTION

The STS-1701U integrates LED display, ultra-thin keyboard, mouse touchpad, which are
integrated in a 1U height unit and installed in a drawer way, which can save 85%
space compared with standard keyboard,monitor and mouse with insufficientspace.
High qualityGrade A 17” led (no bright dots) display and a built-in switch can directly
manage 8 servers; up to 256 servers can be managed.

PACKAGE CONTENT

①1 * 17” 1 Port LED VGA KVM Switch
②1 * Power cord
③ 2 * Rack Mounting
④1 * 1.8mKVM VGAUSB Cable

HARDWARE FEATURES

body in 1U ofrack spaces.
The 17-inch LED HD display and KVM controller are integrated in a single dual-rail
The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle.
Drawer type. USB HUBfunction can be realized through the front USB2.0 interface.

Display Specifications

• Screen Type: 17" LED

• Resolution: 1280×1024

• Brightness: 300 nits

• Contrast Ratio: 700:1

• HD Resolution Support: 1280×1024 @ 60–75Hz

• Mounting Design:

  • Double Slide Rail Structure: The keyboard and touchpad can slide out for use and retract to save space when not needed. Only the LED display remains visible, allowing monitoring of server status without occupying extra space.

OS Compatibility

• Compatible with:

  • DOS / Windows series

  • Linux

  • Unix

  • Mac OS 8.6/9/10

Connectivity & Controls

• Direct Computer Connection: 1

• Max Computer Connections: 1

• Connection Cable Port: D-SUB15 (Monitor, 2×USB)

• Toggle Scan Time: 1–255 seconds (adjustable via OSD)

• Switch Mode: Hotkey, Button, OSD

• Display Control: Multi-language OSD available

Input Devices

• Keyboard/Mouse: 104-key mechanical quiet keyboard with touchpad

Power & Enclosure

• Voltage Input: AC 110V–240V, 50Hz–60Hz

• Power Consumption: 36W

• Material: High Strength Anti-Corrosion Steel Plate

• Color: Insulation black baking varnish (customizable)

Physical Dimensions

• Size: 450mm(D) × 440.4mm(W) × 44mm(H)

• Weight: 17.5 KG

Environmental Specs

• Storage Temperature: -30°C to 70°C

• Operating Temperature: -10°C to 60°C

• Humidity: 0% to 80% RH

• Certification: CE
