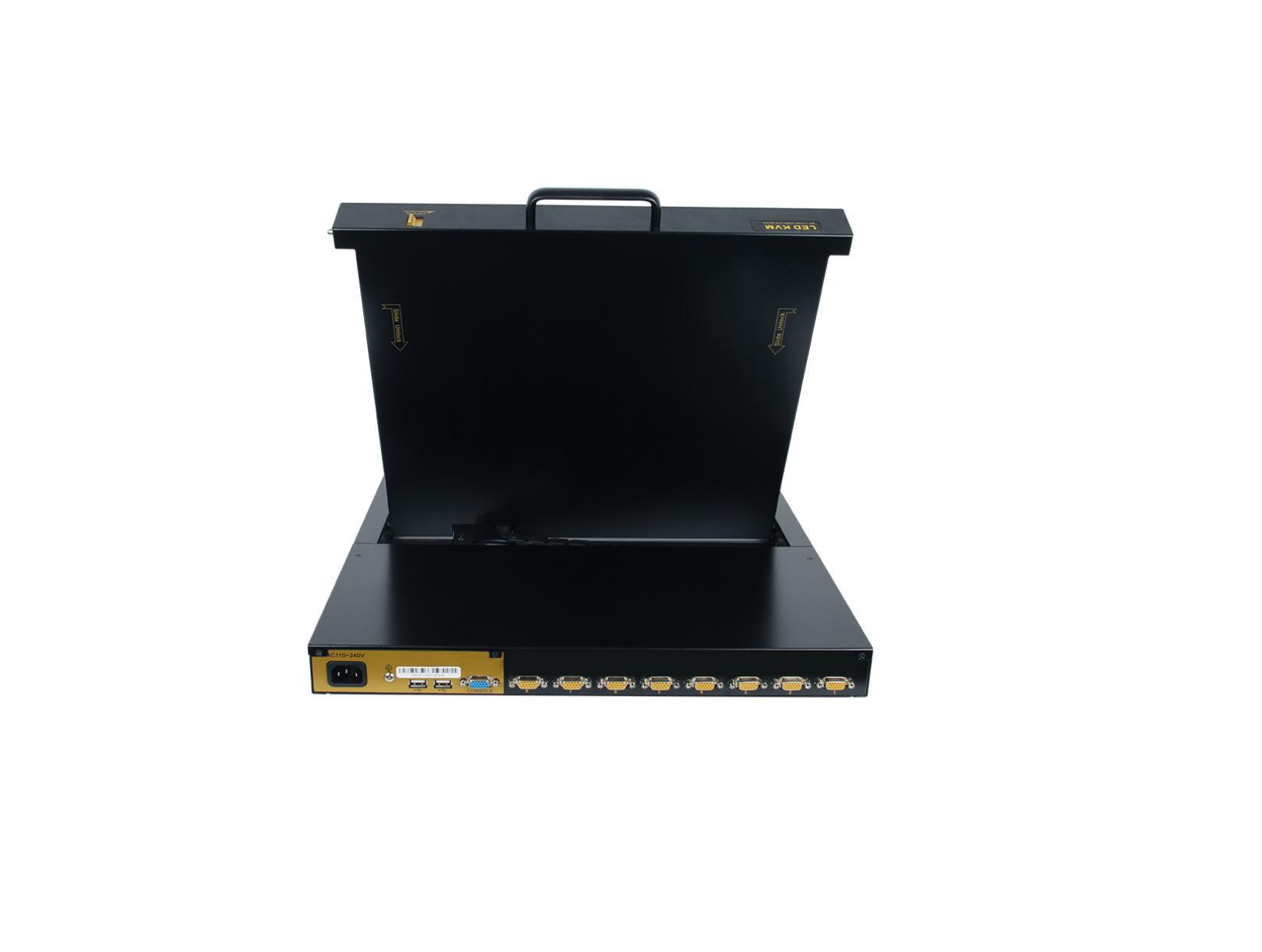

17.3" 4 Ports LED HDMI KVM Switch

17.3" 4 Ports LED HDMI KVM Switch

1. Product Introduction

The ST-17P4KSHD integrates LED display, ultra-thin keyboard,mouse and touchpad,
which are integrated in a 1U height unit and installed in a drawer way, which can save
85% space compared with standard keyboard,monitor and mouse with insufficient
space. High qualityGrade A 17.3” led (no bright dots) display and a built-in switcher
can directly manage 4 servers; up to 128 servers can be managed

2. Package Contents

①1 * 17.3” 4 Port HDMI LED KVM Switch
②1 * Power cord
③2 * Rack Mounting
④4 * 1.8mHDMIUSB KVM Cable

Product Features

Hardware Features:
The 17.3-inch LED HD display and KVM controller are integrated in a single dual-rail body in 1U of rack spaces. The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle. Drawer type. USB HUB function can be realized through the front USB2.0 interface.

Multiple Management Styles:
Easily switch between servers by hotkey or panel button. Automatic scan mode is provided to continuously monitor the host selected by the user. It supports hot plug — servers can be added or removed at any time without powering down. You can name the server and vaguely enter the SN number to quickly locate and select the server security features you need.

Control Function:
A single group of controllers manages 4 servers. Multiple devices can be cascaded to manage up to 128 computers.

The device supports multi-user account management, including management levels, password protection, and the ability to search PC server names.

HD Resolution:
It features a 17.3-inch LED display with high brightness and high definition, offering a resolution of up to 1920x1080 at 60Hz.

Double Slide Rail Structure:
The LED display and keyboard/touchpad can be pulled out to effectively save space in the computer room. When the keyboard/touchpad is not in use, it can be pushed back into the rack, leaving only the LED display visible, enabling management personnel to monitor server status efficiently.

Operating System Compatibility:
Compatible with a wide range of systems including DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, and SUN Solaris 8/9.

Technical Specifications (as per tabular data):

• Direct Computer Connection: 4

• Maximum Computer Connections: 128

• Connection Interface: HDMI (plus 3 USB for keyboard & mouse)

• Toggle Scan Time: 1–255 seconds (adjustable via OSD)

• Applicable Cabinet Depth: 800–1040mm

• Switch Mode: Hotkey, Button

• Display: 17.3" LED, 1920x1080 resolution, 300 nits brightness, 1000:1 contrast ratio

• Display Control: Multi-language OSD

• Keyboard/Mouse: 104-key mechanical quiet keyboard with touchpad

• Voltage Input: AC 110V–240V, 50–60Hz, Power consumption: 35W

• Material: High-strength anti-corrosion steel plate

• Color: Insulation black baking varnish (custom colors available)

• Dimensions / Weight: 450mm (D) × 481mm (W) × 43.8mm (H), 17.5 KG

• Storage Temperature: -30°C to 70°C

• Operating Temperature: -10°C to 60°C

• Humidity Tolerance: 0% to 80% RH

• Certification: CE
