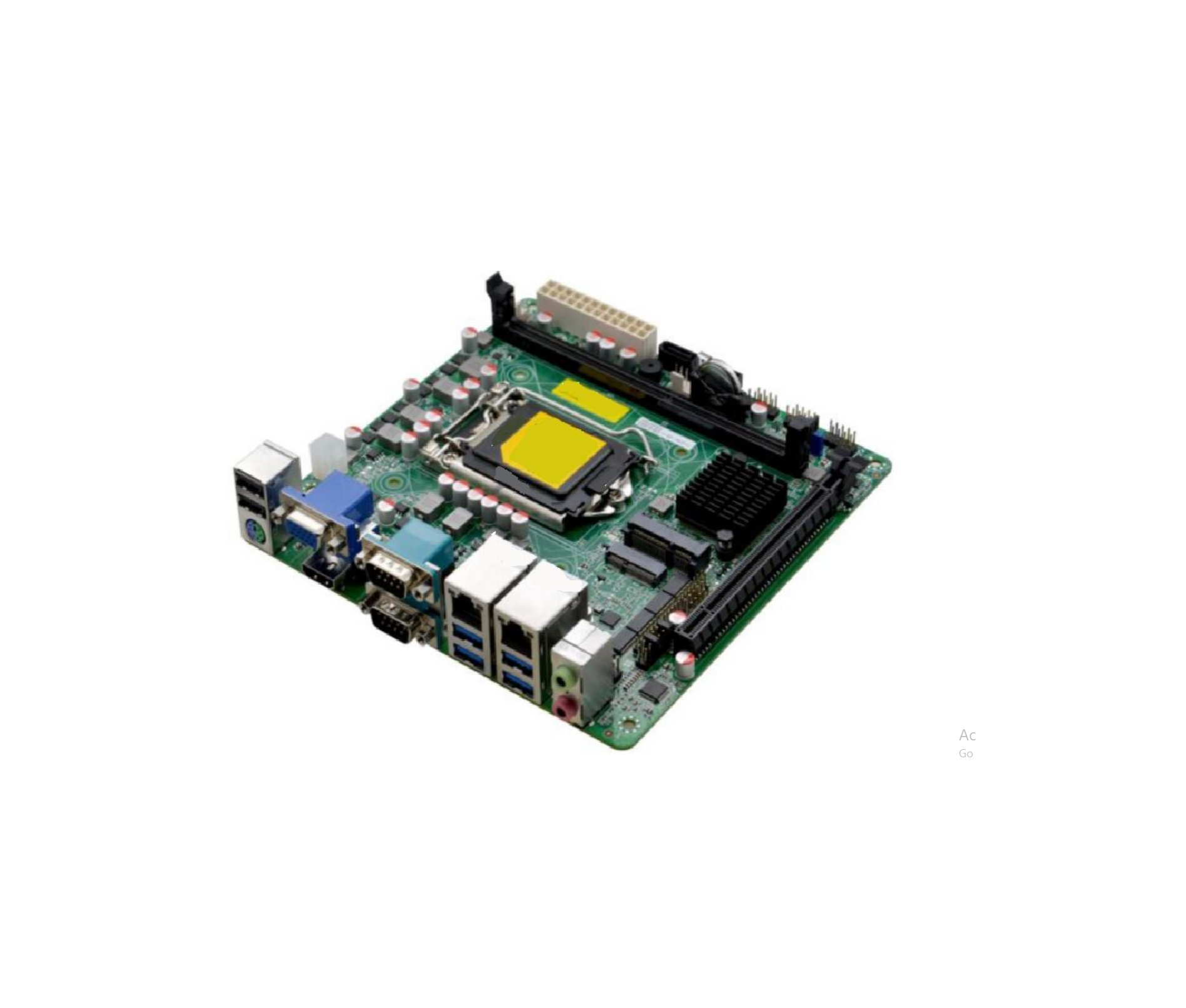

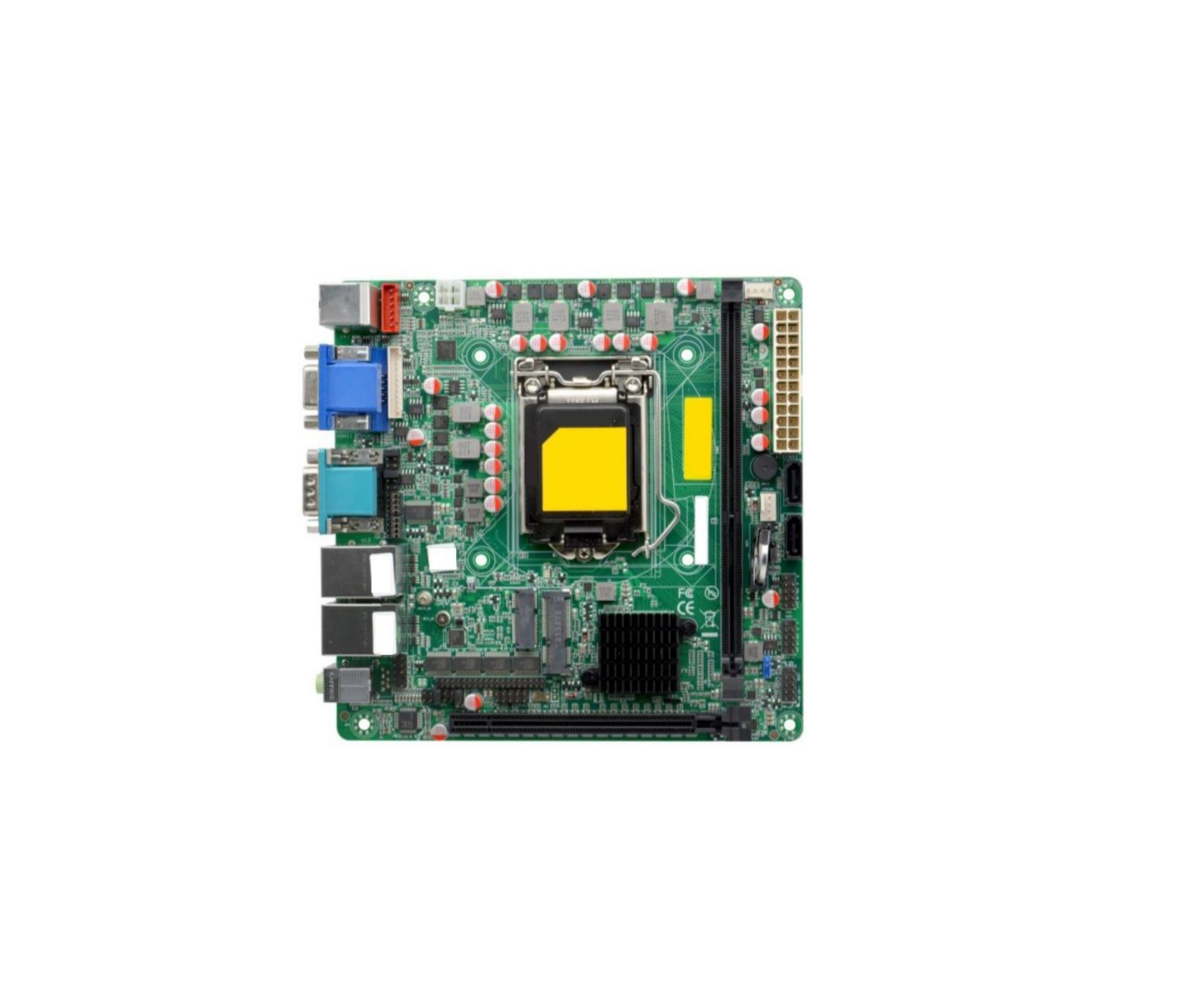

STS ITX-B75M MOTHER BOARD

STS ITX-B75M MOTHER BOARD

 Hardware Specifications

• Model No.: STS-ITX-B75M VER:1.0

• Processor: Support Intel® LGA1155 2th/3th Celeron/Pentium/Core i3/i5/i7 processor

• Chipset: Adopt Intel Z77/B75 High express chipset

• Memory: 1*DDR3 DIMM memory, support 1066/1333/1600MHz memory, up to 8GB

• Display: Integrated Intel® HD Graphics, 1VGA port, 1HDMI1.4 port

  • Support single display/dual display/expansion

• Network:

  • 1*Intel 121AT Gigabit Ethernet, support LAN wake-up, PXE function

  • 1*Intel 1219V Gigabit Ethernet, support LAN wake-up, PXE function

• Storage:

  • 2*SATA2.0 HDD slot, transfer rate up to 3Gbps

  • 1*MSATA SSD slot, transfer rate up to 6Gbps

• Audio: Onboard ALC888S high-fidelity audio controller, support MIC, Line_out

• Expansion Slot: 1*PCIE2.0 x16

• Rear I/O:

  • 1*PS/2 Keyboard and Mouse interface

  • 1*VGA

  • 1*HDMI

  • 2*RS232 COM port, COM1/2 support 5V/12V charged function

  • COM1/2 support RS485/422

  • 2*USB 2.0

  • 4*USB 3.0

  • 2*RJ-45 Gigabit Ethernet Ports

  • 1Line-out (green), 1MIC (red)

 Built-in I/O, Power, and Environmental Specs

• Built-in I/O Ports:

  • 1VGA1 interface, 112pin (same signal as Rear VGA)

  • 1PS/2 keyboard / mouse port 16pin

  • 1Front Audio Interface, 25pin

  • 4USB 2.0 Interface, 25pin

  • 4RS232 Serial Interface, 220pin

  • 1front panel function buttons and LED port 25pin

  • 1*24pin ATX Power Input

  • 1*4pin ATX Power Input

  • 1AC power on automatic startup function, 13pin

• Fan Interface:

  • 1*4pin CPU Smart Fan interface

  • 1*4pin System Fan interface

• GPIO: Support 4-way input/output GPIO

• BIOS: 32Mb Flash ROM

Power and Environmental Parameters

• Watch Dog: Support hardware reset function (L256, 0–255 seconds)

• OS Support: Windows 7 / Linux

• Power Type: 24Pin ATX Power Input

• Working Temp.: -10°C ~ 60°C

• Storage Temp.: -20°C ~ 70°C

• Working Humidity: 5%–95% relative humidity, non-condensing

• Dimension: 170mm x 170mm (ITX)
