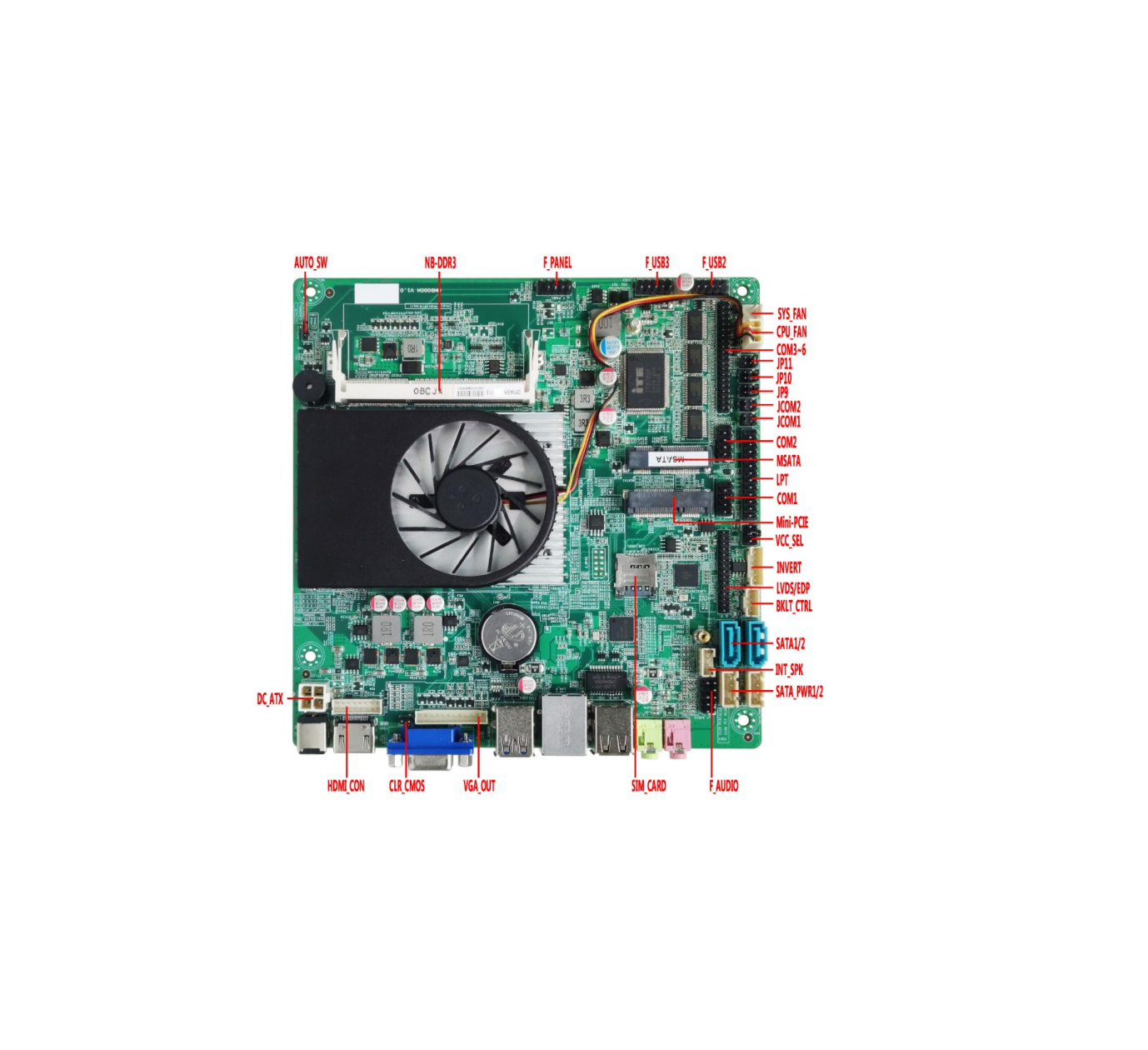

STS Industrial Mother Board IMB-4010

STS Industrial Mother Board IMB-4010

Audio Function
1LINE OUT Port – Support Audio output (green)
1MIC IN Port – Support Microphone input (red)
1INT SPK Pin – Amplifier Support 8 ohm 5 watt speaker dual channel output (4Pin, 14Pin, 2.0mm)
1F AUDIO Pin – Standard audio Pin (9Pin, 25Pin, 2.54mm)

USB Function
2USB3.0 Port – Rear Standard USB3.0 Port
2USB2.0 Port – Rear Standard USB2.0 Port
1F USB2 Pin – Front USB2.0 Pin, one PIN have 2USB2.0 (9Pin, 25Pin, 2.54mm)
1F USB3 Pin – Front USB3.0 Pin, Another PIN have 2USB3.0 (19Pin, 25Pin, 2.54mm)

Switch Function
1F PANEL Pin – Switch, Power light, Hard Disk Light, Restart Pin (9Pin, 25Pin, 2.54mm)
1AUTO_SW Pin – Hardware control power-on and boot Pin (3Pin, 13Pin, 2.54mm)

Other I/O
1COM1 Pin – Serial port, only Support RS232 (9Pin, 25Pin, 2.54mm)
1COM2 Pin – Serial port, COM2 Support RS232/RS422/RS485 optional (9Pin, 25Pin, 2.54mm)

1JCOM1 Pin – Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 23Pin, 2.0mm)
1JCOM2 Pin – Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 23Pin, 2.0mm)
JP9/JP10/JP11 Pin – COM2 Support RS422 and RS485 signal jumper setting (6Pin, 2*3Pin, 2.0mm)

COM3–COM6 Pins – Serial port, Support standard RS232 (9Pin, 2*20Pin, 2.0mm)

1*SIM_CARD SLOT – Support SIM SLOT, SIM card is required when using 3G/4G

1CLR_CMOS Pin – CMOS Pin (2Pin, 12Pin, 2.54mm)
1SYS_FAN Pin – System fan Pin, full speed, no Support temperature control (3Pin, 13Pin, 2.54mm)

1CPU_FAN Pin – CPU fan Pin, Support temperature control (3Pin, 13Pin, 2.54mm)

Operating environment
Working temperature: -20°C~60°C, working humidity: 5%~95% relative humidity, non-condensing

BIOS
AMI BIOS, Support Power on, start on time, remote switch on and off, intelligent identification of equipment

Watch Dog
Watchdog programming, Support hardware reset Function (256 levels, 0~255 seconds)

Operating system
Support Windows 10, Windows 8, Windows 7, Linux

Product Specifications

Board size
170mm (L) * 170mm (W) * 20mm (H)

CPU
Support 4th Gen CPU: i3-4010U

Chipset
Haswell-U, Broadwell-U High-speed chipset

Memory Support
1*DDR3 SODIMM memory slot, Support 1600MHz memory, low voltage 1.35V, maximum Support 8GB

Power
1DC_IN – DC motherboard only supports 12V; the inner diameter of the DC head is 2.5MM
1DC_ATX – Mainboard power consumption: about 30W. It is recommended to use 12V5A or above power supply

Display Function

4th generation integrated Intel® HD4400 graphics controller,
Support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS

• 1VGA DB15 Port – Support Resolution 19201080@60HZ

• 1VGA_OUT Pin – Support Resolution 19201080@60HZ (12Pin, 1*12Pin, 2.0mm)

• 1HDMI 1.4 Port – Support Resolution 4096/38402160@30HZ

• 1HDMI_CON Pin – Support Resolution 4096/38402160@30HZ (16Pin, 2*8Pin, 2.0mm)

• 1LVDS/EDP Pin – Support Resolution 19201030@60HZ (30Pin, 2*15Pin, 2.0mm)

Note:
LVDS and EDP share the same common pin; default LVDS signal, EDP signal can be changed

• 1VCC_SEL Pin – LVDS/EDP Voltage control Pin (6Pin, 23Pin, 2.0mm)

• 1INVERT Pin – LVDS/EDP Backlight switch control Pin (6Pin, 16Pin, 2.0mm)

• 1BKLT_CTRL Pin – LVDS Backlight brightness adjustment Pin (4Pin, 14Pin, 2.0mm)

Network Function

1RJ45 LAN Port – RTL8111F or Intel 1211 Gigabit Ethernet chip, Support Wake on LAN and PXE diskless boot function
1Mini-PCIe Port – Support WIFI/3G/4G/GPS/Bluetooth module, etc.

Hard Disk Function

1mSATA Port – Support MSATA disk
2SATA Port – Standard SATA3.0 hard disk Port, maximum transfer speed 6.0 Gbps
2SATA_PWR Pin – Hard disk power supply Pin, which can take 5V, 12V (4Pin, 14Pin, 2.54mm)
